My intake manifold is currently being prepped (fuel rails, etc) ready to drop on top of the engine... then it's in the car, and tune time!
Snapped a few pics of what my mechanic is doing to the fuel rails...

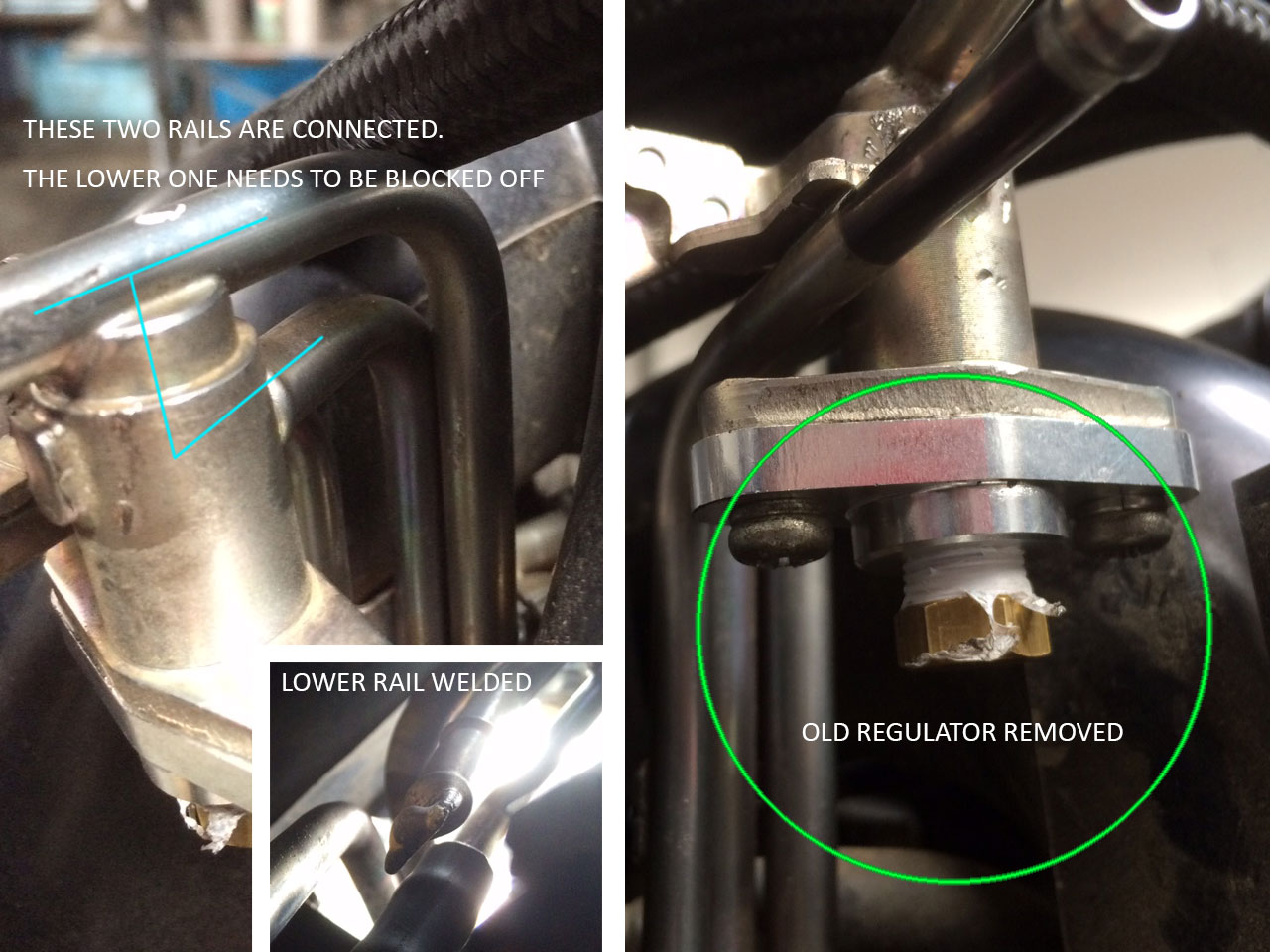

- fuel-rail-mod.jpg (190.34 KiB) Viewed 2336 times
Basically the housing that the factory fuel pressure regulator fits to is attached to two pipes on the fuel rail. There is a hole in the top pipe that enters the fuel pressure reg housing (you can see it when you look up inside the housing when it is off the car).
The simplest setup seems to be putting a bung in the fuel pressure reg housing, and blocking off that lower rail (crimping it, welding it and also putting a rubber stopper on it). Therefore this whole lower section is not used. Alternatively the entire piece could be cut off - but that would require threading a new hose fitting onto the rail.
My only concern is that the fuel reg housing will get fuel sitting in it... (possibly not moving, so could get hot?). Although as the fuel line is pressurised I think the fuel will continue to move around.
