Postby Tradewind » Wed Jun 04, 2014 9:08 am

First install is an adaption of the EZ30 Gen IV SC kit

Here we go, history has been made in Massachusetts USA.
Attachments

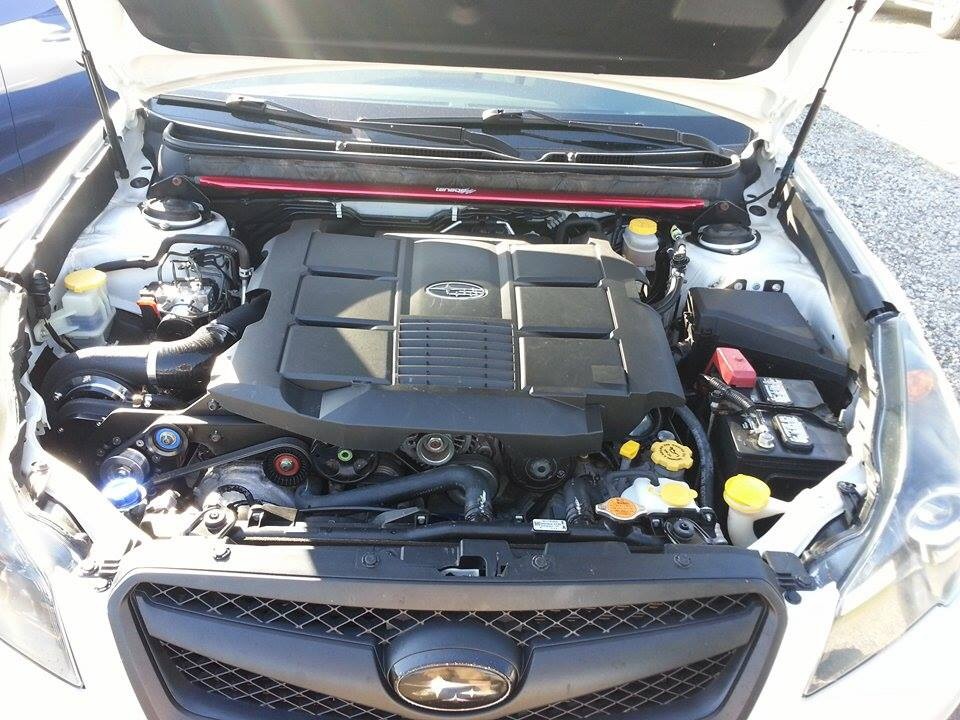

Legacy EZ36 Raptor installed (4).jpg
Legacy EZ36 Raptor installed (4).jpg (89.46 KiB) Viewed 5095 times
Legacy EZ36 Raptor installed (11).jpg
Legacy EZ36 Raptor installed (11).jpg (81.03 KiB) Viewed 5095 times

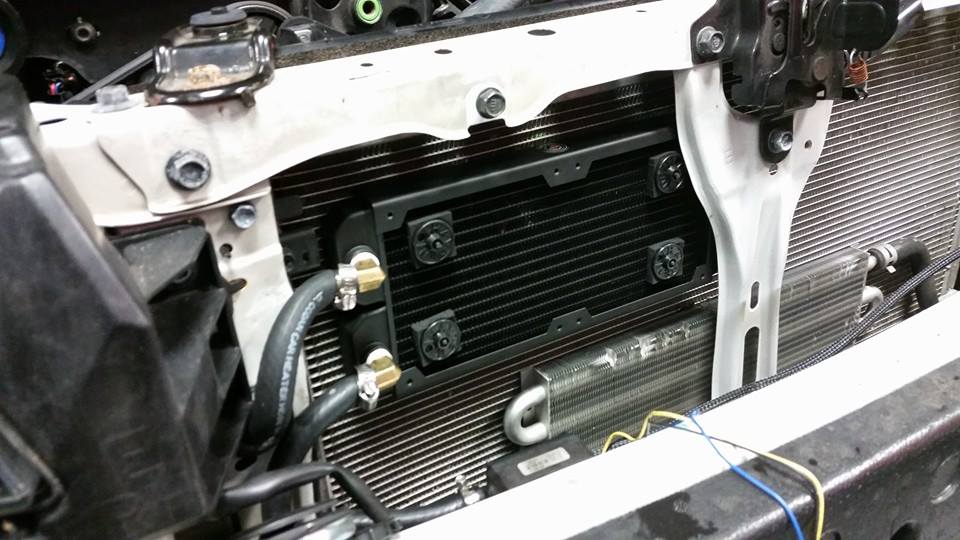

Legacy EZ36 Raptor installed (3).jpg
Legacy EZ36 Raptor installed (3).jpg (56.34 KiB) Viewed 5095 times

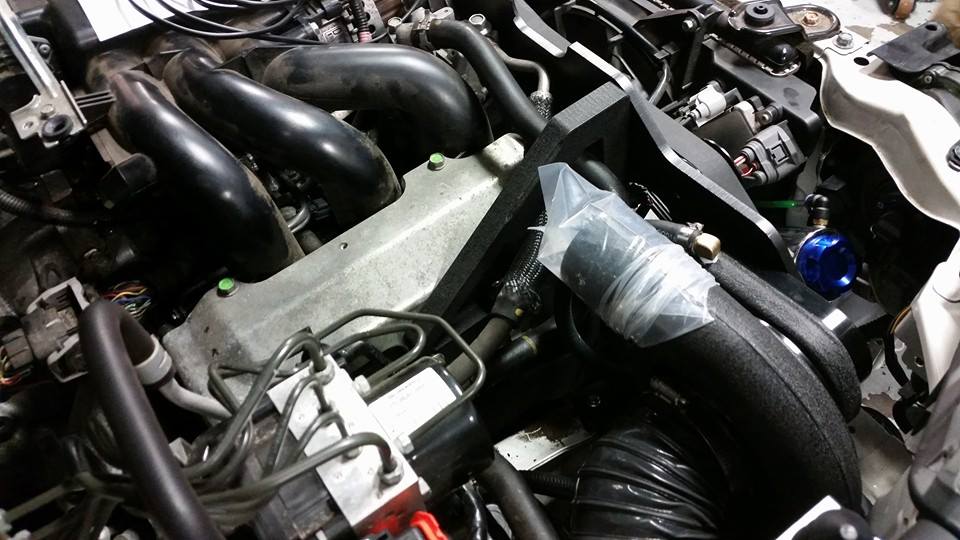

Legacy EZ36 Raptor installed (2).jpg
Legacy EZ36 Raptor installed (2).jpg (87.33 KiB) Viewed 5095 times

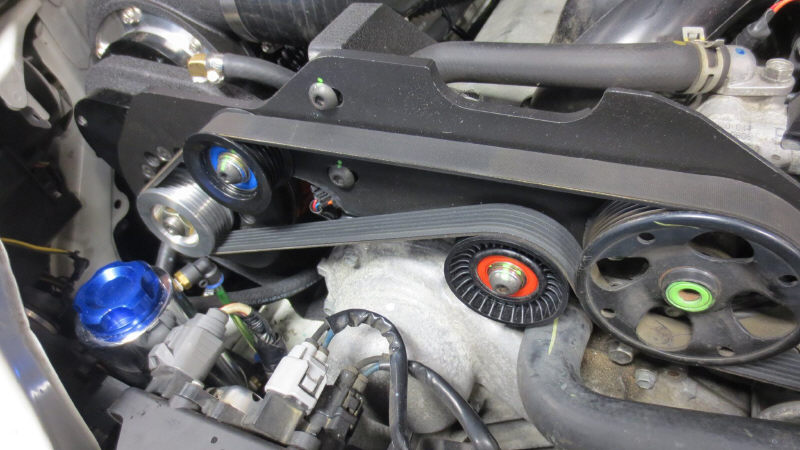

Legacy EZ36 Raptor installed (1).jpg
Legacy EZ36 Raptor installed (1).jpg (79.78 KiB) Viewed 5095 times
Last edited by Tradewind on Sat May 09, 2015 6:39 am, edited 2 times in total.
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Sun Jun 08, 2014 3:45 pm

The vehicle is complete - owner is driving it to WBM in around 4-5 hrs time

http://www.wickedbigmeet.com/

Will be revealed to the world :)
Attachments

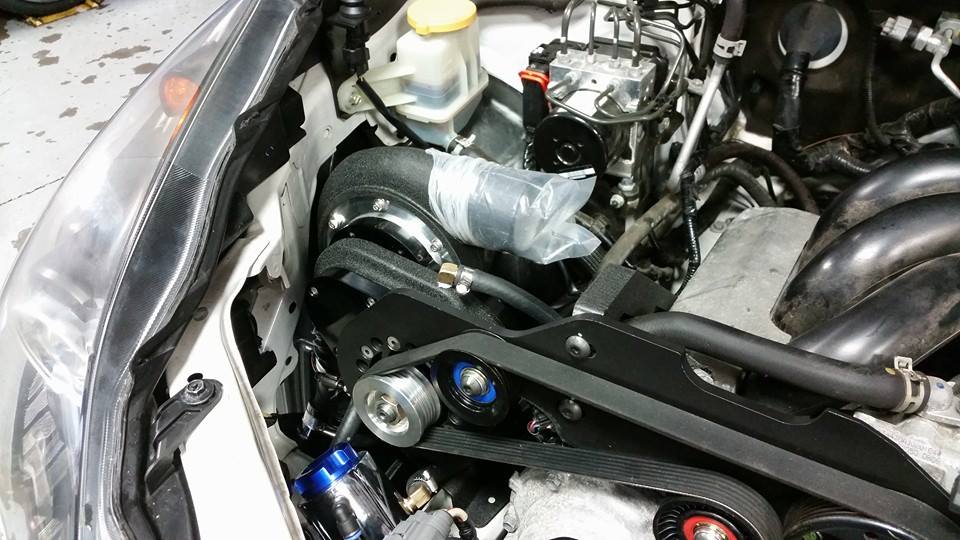

Legacy EZ36 Raptor installed (resized) (Copy 1).jpg
Legacy EZ36 Raptor installed (resized) (Copy 1).jpg (76.48 KiB) Viewed 5095 times
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Gen5is » Sun Jun 08, 2014 8:30 pm

Interesting.. Lots of pics and vids please! Also dyno charts! :D
User avatar
Gen5is

Posts: 797
Joined: Tue Oct 02, 2012 2:00 pm
Location: Sydney
Car: MY12 Subaru Liberty 2.5i Wagon
Real name: Eric
Profile URL: viewtopic.php?f=10&t=22586

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Sun Jun 08, 2014 10:41 pm

Complete

Videos etc all coming over next week or so
Attachments
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Sun Jun 08, 2014 10:42 pm

Main thing now is the fitment and alterations have been confirmed.

Kit in non IC form is essentially customer ready right now!

Gen V Premium owners now have power upgrade options

Headers for these soon too if all goes to plan
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby KiDo_Tuning » Sun Jun 08, 2014 11:01 pm

Loving the extra chassis room for the SC intake! Could nearly get a 3" silicon bend in there!
KiDo Racing Tunes Info: HERE

Great minds discuss ideas;
Average minds discuss events;
Small minds discuss people
User avatar
KiDo_Tuning

Posts: 2798
Joined: Sun Jun 10, 2012 11:53 pm
Car: Subarus + Nissans
Real name: Matt

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Mon Jun 09, 2014 3:53 pm

KiDo_Tuning wrote:Loving the extra chassis room for the SC intake! Could nearly get a 3" silicon bend in there!


First thing I noticed too, awesome. Could do a 83mm silicon bend into there EASY



Installation instructions now written - we are customer ready
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Gen5is » Mon Jun 09, 2014 4:59 pm

Anything in store for the gen v 2.5 motor?
User avatar
Gen5is

Posts: 797
Joined: Tue Oct 02, 2012 2:00 pm
Location: Sydney
Car: MY12 Subaru Liberty 2.5i Wagon
Real name: Eric
Profile URL: viewtopic.php?f=10&t=22586

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby KiDo_Tuning » Mon Jun 09, 2014 6:56 pm

Gen5is wrote:Anything in store for the gen v 2.5 motor?


Would be identical kit to the Gen IV 2.5 :)
KiDo Racing Tunes Info: HERE

Great minds discuss ideas;
Average minds discuss events;
Small minds discuss people
User avatar
KiDo_Tuning

Posts: 2798
Joined: Sun Jun 10, 2012 11:53 pm
Car: Subarus + Nissans
Real name: Matt

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Tue Jun 10, 2014 8:16 pm

We now have webpage for new system

http://www.raptorsc.com.au/subaru9.html


For the 2.5i? Plastic manifold engine?
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby KiDo_Tuning » Tue Jun 10, 2014 8:32 pm

Tradewind wrote:We now have webpage for new system

http://www.raptorsc.com.au/subaru9.html

For the 2.5i? Plastic manifold engine?


Plastic is FB20/25

This is the 07-09 EJ25 motor with metal intake. Same as the 08-10 Forester NA :)
KiDo Racing Tunes Info: HERE

Great minds discuss ideas;
Average minds discuss events;
Small minds discuss people
User avatar
KiDo_Tuning

Posts: 2798
Joined: Sun Jun 10, 2012 11:53 pm
Car: Subarus + Nissans
Real name: Matt

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Gen5is » Tue Jun 10, 2014 10:16 pm

My EJ motor has the plastic manifold though lol..

In theory, how would the tuning be done with a CVT, since i've heard CVTs don't work well with dynos.. lol
User avatar
Gen5is

Posts: 797
Joined: Tue Oct 02, 2012 2:00 pm
Location: Sydney
Car: MY12 Subaru Liberty 2.5i Wagon
Real name: Eric
Profile URL: viewtopic.php?f=10&t=22586

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Fri Jun 13, 2014 8:16 pm

Kido can manage the CVT and tuning - that be the least of our problems, he has tuned a significant amount of CVT Subaru already

I did suspect your model has the plastic, hence the question.

I went through my collection and found a 2010 with the EJ H4 (see timing belt covers)

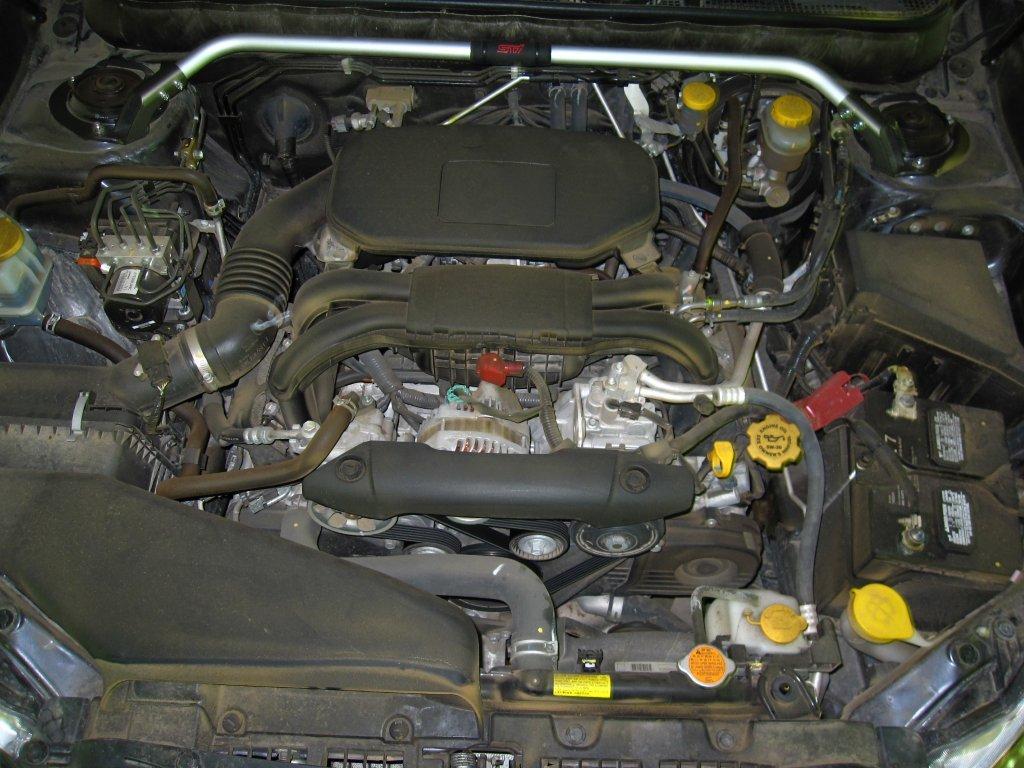

See attached pic, I cant help on this one unfortunately

This shows the CLASSIC Subaru mentality at work here, which is why I nearly always ask for pictures of H4 engines.

We see here the use of plastic manifold (also tested in USA Impreza in 2004 only) and the first instance of the single drive belt for all accessories, this being the test bed for these features that would in time show up on the FB20/25 engines. Of course the power steering pump is from approx 2005 Impreza, but AC pump is new and only on GEN5 cars. They do the same with Impreza's, Foresters etc and often I noticed an engine of improved power first offered in Liberty models before seeing it a couple of years later in Impreza. They (early H4) are testing to put kits to because of this way in which they spec their engines, Forester EJ NAs are the most mixed up things ever in their early years.
Attachments
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Tradewind » Sat Jun 21, 2014 9:48 am

EZ36 kit update

Mustang Dyno

Dyno power at 4.2psi

As delivered to customer 287hp at wheel, safe thing while they are getting their heads around the concept

Highest no knock dyno run @ 4psi - 301hp at wheel

I will put up a chart when Paul from ECS in USA sends it to me. I asked for stock 191, 287 and 301 lines to be featured.

Could be a bit animal with 7-8psi, headers and water/meth kit - will let you know when that occurs
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2032
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Supercharger Systems - Liberty/Legacy Gen V EZ36

Postby Gen5is » Sat Jun 21, 2014 11:54 am

Yeah, my motor pretty much looks like the one pictured.

So you're saying this version of the EJ series is un-superchargeable? Is this due to the design of the motor using a single belt pulley for all accessories or something else that I missed in your explanation?
User avatar
Gen5is

Posts: 797
Joined: Tue Oct 02, 2012 2:00 pm
Location: Sydney
Car: MY12 Subaru Liberty 2.5i Wagon
Real name: Eric
Profile URL: viewtopic.php?f=10&t=22586

Next

Return to Raptor Superchargers
