4GEN Liberty/Legacy - RAM INTAKE SYSTEM

CAI Options select your choice

Poll ended at Wed Jul 03, 2013 6:03 pm

1. Stay with my stock air box/intake system and maybe add a K&N or similar replacement performance filter
4
11%
2. A fancy mandrel bent polished 3" pipe with MAF mount (power benefit unknown and possibly very loud) - look sexy - Price range $280 - $350
2
6%
3. Advanced dyno proven intake system with tapered air guide to MAF, dual layer air filter (material not decided on yet), 10kw (Proven) gain at wheels - emits amazing Porsche H6 induction sounds (proven) Price range $340 - $480
29
83%

Total votes : 35

4GEN Liberty/Legacy - RAM INTAKE SYSTEM

Postby Tradewind » Sun May 19, 2013 6:03 pm

After a weekend on testing new CAI setup in conjunction with XRT I pose the following options - tick the item you would like if you were choosing CAI

I decided on a poll to see what the H6 community might be interested in before I get too busy. THIS IS FOR NON SUPERCHARGED H6 powered CARS globally - so there is no confusion - yes for the factory standard Subaru engine

I have only 2 goals with the 3rd option - MORE POWER and the MOST refined H6 intake SOUND on the planet. Perfect driveability etc

Consider that the 3 option + Raptor headers + tune (either XRT or KiDO or your own choice) can show a significant power gain over stock. Yes that much is possible, definitely 20+Kw in total. These are very revy engines so we give it the 100% chance to unleash the potential of this excellent engine. By adding the tuned CAI to my Liberty it went from 149 kw to 158 kw (wheel) yesterday during testing. I have to set it up for cooler intake air and we expect 10kw+ gains consistently.

Both options 2 and 3 are dead easy to fit.

OPTION 3: Requires A TUNE, you cannot drive 1 meter without it. If you have already been tuned by KiDo (within 12months) then possibly this costs you no more, with XRT you need to enquire if any extra tune cost

Poll runs for 45 days - If option three is the most popular then we go ahead - if not then Raptor may not make a NA CAI at all - as I said, I look to bring power gains

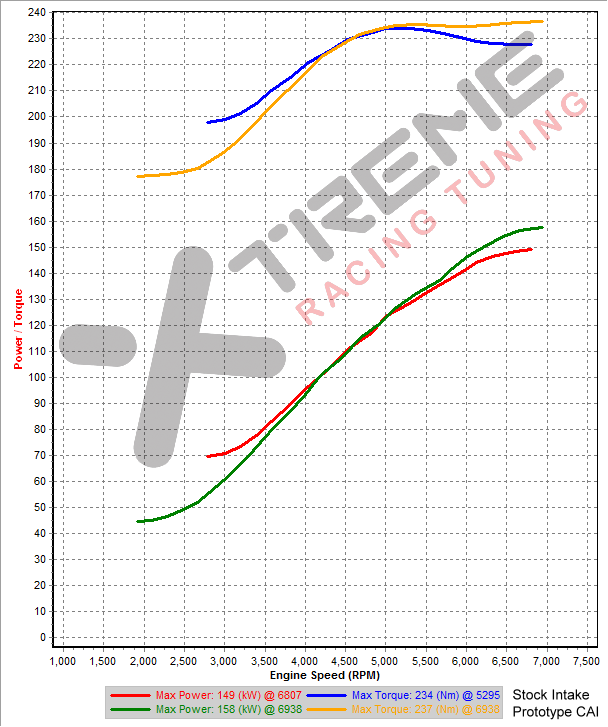

The attached chart is a clue to what we are seeing from the unfinished prototype - no tuning apart from a MAF rescale. With additional tuning the power may increase even further - dont know that answer yet

This is the same development path we went with the headers - same testing - with XRT assisting on data analysis
Attachments
Raptor Prototype CAI.png
Raptor Prototype CAI.png (50.82 KiB) Viewed 5430 times
Last edited by Tradewind on Wed Nov 16, 2016 7:00 am, edited 5 times in total.
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Raptor Performance CAI - You decide

Postby alessandro132 » Sun May 19, 2013 6:25 pm

Nice work Tim, good to see you get hands-on with the R&D :mrgreen:
TEAM TOYOTA | TEAM HKS

Cusco, HPI, HKS, and a few other bits...
User avatar
alessandro132
-stickered-

Posts: 2380
Joined: Wed Mar 21, 2012 8:40 am
Location: Sydney
Car: 2000 JZX100 Toyota Chaser Tourer V
Real name: Al
Profile URL: viewtopic.php?f=10&t=16914

Re: Raptor Performance CAI - You decide

Postby Tradewind » Sun May 19, 2013 6:56 pm

alessandro132 wrote:Nice work Tim, good to see you get hands-on with the R&D :mrgreen:


Alessandro

Unfortunately - if I dont do it - it wont happen :mrgreen:
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Raptor Performance CAI - You decide

Postby Tradewind » Sun May 19, 2013 7:19 pm

I should add the following

WARNING - I have no idea if this new performance gain is achievable with factory exhaust manifolds - my personal thought is that the answer would be NO.

I am testing with 98 octane fuel, Raptor headers with stock exhaust system and cats. Tune is a normal NA tune rescaled 20% for the new intake pipe
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Raptor Performance CAI - You decide

Postby jakey » Sun May 19, 2013 7:48 pm

time frame? I'll have to start saving.

option 3 has the only good sounding marketing speel
-Jakey-UBARU
User avatar
jakey

Posts: 1083
Joined: Sun Jan 29, 2012 12:13 am
Location: Melbourne
Car: UBARU - 2005 MY06 3.0R
Real name: Jake
Profile URL: viewtopic.php?f=10&t=15489

Re: Raptor Performance CAI - You decide

Postby Brunsy3.0 » Sun May 19, 2013 10:27 pm

ill definitely be keeping an eager eye on this space, keep up the good work Tim
....THE WHITEWASH....
User avatar
Brunsy3.0

Posts: 1027
Joined: Tue Aug 30, 2011 7:01 pm
Location: Katherine, NT
Car: 07 3.0 Liberty Spec. B pearl white
Real name: Daniel
Profile URL: viewtopic.php?f=10&t=21059

Re: Raptor Performance CAI - You decide

Postby Tradewind » Mon May 20, 2013 6:34 am

Re: Time frame

I actually have to figure out how we are going to produce it, the shape of the intake is critical to performance and its extremely difficult to mass produce, this is why I am checking to see the interest levels before I put serious hrs into working out the method of manufacture

I would like to have it up and going by end of August if possible
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Raptor Performance CAI - You decide

Postby SubMeister » Mon May 20, 2013 5:22 pm

Subscribed.

Power + refinement + 911 intake sound = :D
SubMeister

Posts: 166
Joined: Mon Oct 17, 2011 5:28 pm
Location: Melbourne
Car: H6 Spec B MY09

Re: Raptor Performance CAI - You decide

Postby Tradewind » Mon May 20, 2013 5:45 pm

Today I have left the intake with someone who has the capacity to reproduce it

I will collect it again and in the next 5 or so days make a video of the sounds through the rev range. Up to 5000rpm, you cant tell its not 100% stock, above that the H6 gods begin their chorus - nothing like you can imagine
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Raptor Performance CAI - You decide

Postby jakey » Mon May 20, 2013 6:34 pm

Tradewind wrote:above that the H6 gods begin their chorus



-Jakey-UBARU
User avatar
jakey

Posts: 1083
Joined: Sun Jan 29, 2012 12:13 am
Location: Melbourne
Car: UBARU - 2005 MY06 3.0R
Real name: Jake
Profile URL: viewtopic.php?f=10&t=15489

Re: Raptor Performance CAI - You decide

Postby SH30RB » Mon May 20, 2013 7:19 pm

I'd bite the bullet and say yes to option 3...










But, I am already in the planning stages for doing a turbo build at the end of the year
TEAM FUNERAL HEARSE!
Only slightly modified, I swear!
User avatar
SH30RB
-stickered-

Posts: 4024
Joined: Sun Aug 07, 2011 8:32 pm
Location: Sydney
Car: 05 Liberty 3.0R-B wagon
Real name: Simon
Profile URL: viewtopic.php?f=10&t=14766

Re: Raptor Performance CAI - You decide

Postby MH3.0R » Mon May 20, 2013 8:09 pm

If one is staying NA, then there really is only one option! :wink: The power with the sound of the Porsche, gotta be a winner imo.
MY11 Jaguar XFS 3.0DTT 6AT White Saloon (Stock as a rock, um, maybe)
MY13 Mercedes B200 CDI 2.0D 7DCT Silver School Run Wagon (definitely stock)
User avatar
MH3.0R
-stickered-

Posts: 2090
Joined: Sat Apr 12, 2008 9:29 am
Location: Melbourne, Vic
Real name: Mark
Profile URL: viewtopic.php?f=10&t=12969#p176433

Re: Raptor Performance CAI - You decide

Postby HoFF » Mon May 20, 2013 8:38 pm

Why does option 3 require an immediate retune?
User avatar
HoFF
-stickered-

Posts: 1447
Joined: Sun Sep 05, 2010 11:39 am
Location: Southern Highlands NSW
Car: MY06 3RB Liberty Wagon 6MT MY09 Foz
Real name: Tom
Profile URL: viewtopic.php?f=10&t=13577&start=255

Re: Raptor Performance CAI - You decide

Postby Tradewind » Mon May 20, 2013 9:01 pm

HoFF wrote:Why does option 3 require an immediate retune?


The distance across the intake tube at the MAF is increased by 20% (or 56% increase in area). Without retune car is so lean and detonates at the slightest touch of the throttle - even in first gear.

You simply drop in a reflash with MAF rescaled and you are driving to perfection in a moment.

This is an extremely serious NA upgrade, to gain around 10Kw from this piece alone is really going somewhere in the NA world. The pull is not unlike a supercharger in that the motor never seems to be running slowly out of puff as you near 7000rpm, it simply keeps up the pull all the way - seat of pants feels exactly like the dyno is showing - on and on and on with increasing power
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Raptor Performance CAI - You decide

Postby alessandro132 » Mon May 20, 2013 9:40 pm

Tim, just looking at the initial graphs more closely, bottom end power and torque is quite a bit down from the stock intake - do you have to sacrifice low end to make more top end with these types of intake?

H6 as you know is a flat torque engine as it is; ideally power/torque figures from 2000rpm up would be the same as stock but with a nice gain north of 6000rpm until redline.
TEAM TOYOTA | TEAM HKS

Cusco, HPI, HKS, and a few other bits...
User avatar
alessandro132
-stickered-

Posts: 2380
Joined: Wed Mar 21, 2012 8:40 am
Location: Sydney
Car: 2000 JZX100 Toyota Chaser Tourer V
Real name: Al
Profile URL: viewtopic.php?f=10&t=16914
