Outback 3.0 w/ single port heads - SUPERCHARGED

Outback 3.0 w/ single port heads - SUPERCHARGED

Postby Tradewind » Sun Aug 26, 2012 7:19 pm

A customer in USA has an Outback with the early 3.0 that he wants to boost

XRT is currently working on decoding the ROM, he is steadily getting it sorted.

Raptor doesnt make a kit specifically for this model, however the customer is really getting into things and moving the ABS is no problem for him. On these early models the ABS is much further forward than on 04 and later cars, this means the early model ABS sits right where the supercharger needs to reside.

Anyhow, if pics etc come along for this extremely rare upgrade of a single port EZ30 I will add them to this thread with the owners permission
Last edited by Tradewind on Thu Oct 11, 2012 5:59 pm, edited 1 time in total.
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby valadares » Mon Aug 27, 2012 4:42 pm

very interesting thread,outback supercharge 4EAT 8)
valadares

Posts: 71
Joined: Sat Jun 23, 2012 1:49 am
Car: OUTBACK MY'08 H6 RAPTOR Subarcharged
Real name: vlad

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Mon Aug 27, 2012 7:23 pm

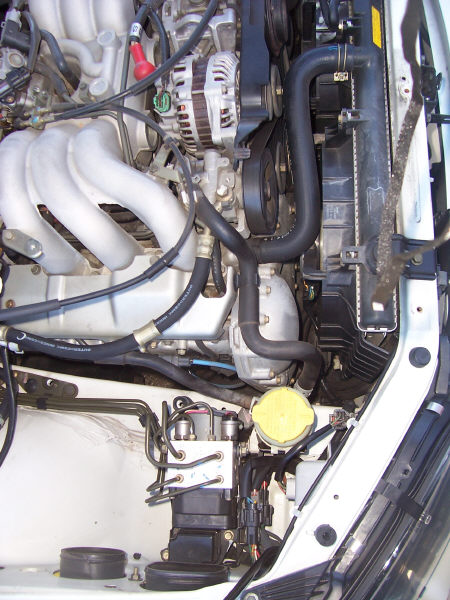

In the attached picture you can see the ABS module is exactly where the supercharger should fit

The USA customer is entirely moving his ABS so the supercharger of his early H6 can happen. Thank goodness Subaru made the changes they did from 2004 onwards

I add that Ed from XRT is decoding the ROM and providing the tuning of this MAP based system for the customer.
Attachments
100_1073 (resized).jpg
2001 Outback Engine layout
100_1073 (resized).jpg (79.53 KiB) Viewed 5082 times
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby 3rspecb » Mon Aug 27, 2012 9:31 pm

Looks like he will also need to relocate the power steering reservoir.
MY06 3rspecb manual sedan, Urban Grey- Shockworks Coilovers '- Gone

MY17 SSv Redline, manual sedan, White.
3rspecb

Posts: 1339
Joined: Mon Oct 09, 2006 10:59 pm
Location: Melbourne
Car: MY17 SSv Redline
Real name: G

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Mon Aug 27, 2012 9:42 pm

G

Yes, it really needs to be like the 04> vehicles with ABS and PS back on the spring tower
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby valadares » Tue Aug 28, 2012 2:56 am

Tradewind wrote:G

Yes, it really needs to be like the 04> vehicles with ABS and PS back on the spring tower


at AIRFILTER box place
valadares

Posts: 71
Joined: Sat Jun 23, 2012 1:49 am
Car: OUTBACK MY'08 H6 RAPTOR Subarcharged
Real name: vlad

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Sun Sep 02, 2012 8:45 am

This one is progressing nicely

XRT has opened up a major part of the ROM with only a couple of small details to tidy up

Epic really, not aware of anyone reflashing this model ever in the past and with SC - one VERY special machine

The first run logs have been coming to XRT and car is responding well, the power is really suprising for a car of this age, its going just as well as our later models even with the rubbish exhaust outlets on the heads
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Sun Sep 02, 2012 8:49 am

From the owner

This version of the 3.0 does not have variable camshaft timing. It has a variable induction solenoid and valve to change the air flow. The variable camshaft system wasn't incorporated until 05 in US market. Mine is straight up, cable driven throttle DOHC with ignition timing controled by the PCM
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby west_minist » Wed Sep 12, 2012 1:42 pm

The car is nice. Even the power. But the rom is like a GOOD Woman. She ain't giving up the any secrets. Only 3 variables needed to just tune her for the SC. Beside that, she can be tuned, but not for boost. lol. I spent weeks decoding and like anything else, nothing good comes easy. Just 3 variables......
User avatar
west_minist

Posts: 1128
Joined: Sat Oct 18, 2008 1:51 pm
Location: Barbados
Car: 2000 Subaru Impreza 2R 4EAT

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Wed Sep 12, 2012 2:42 pm

west_minist wrote:The car is nice. Even the power. But the rom is like a GOOD Woman. She ain't giving up the any secrets. Only 3 variables needed to just tune her for the SC. Beside that, she can be tuned, but not for boost. lol. I spent weeks decoding and like anything else, nothing good comes easy. Just 3 variables......


So you have 3 more to find .....

I ship his stuff out tomorrow I think :mrgreen:
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby west_minist » Wed Sep 12, 2012 3:02 pm

Yes but it isnt easy. Its so surprising that these 3 is so critical to the boosted tuning and cannot be found this easy. Everything else from Ignition to fuel. You saw the pic. Its just the MAP stuff and injector flow.
User avatar
west_minist

Posts: 1128
Joined: Sat Oct 18, 2008 1:51 pm
Location: Barbados
Car: 2000 Subaru Impreza 2R 4EAT

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Sat Sep 15, 2012 7:09 pm

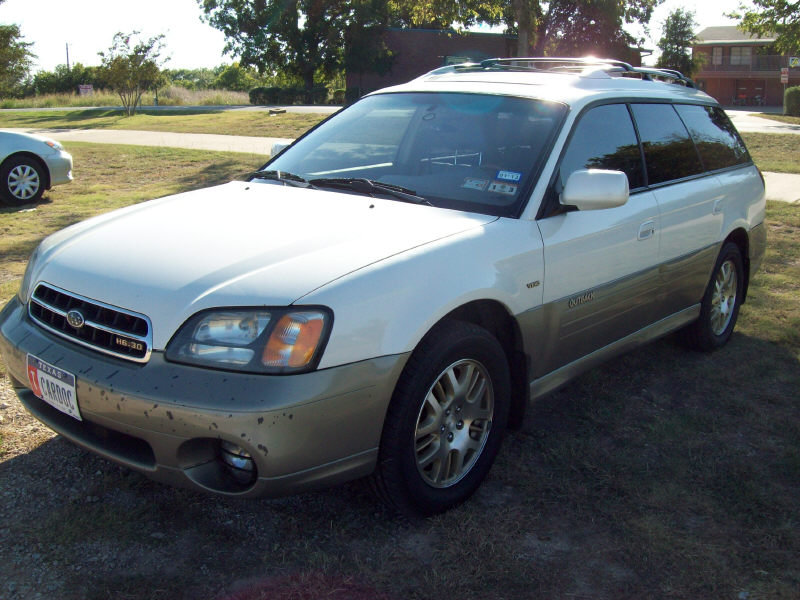

This is how the vehicle looks
Attachments
01 VDC2 (resized).jpg
Subaru Outback 2001 single port H6
01 VDC2 (resized).jpg (112.31 KiB) Viewed 4928 times
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Tue Sep 25, 2012 5:42 pm

Customer is absolutely right into this

He has had is kit hardly 24 hrs and is modding like a demon to fit the kit to the early model. Shifting the ABS module and the Power Steering reservior are number one priorities so the charger system can fit. You have to do this on the GEN 3 vehicle as the SC kit is only made to fit GEN 4 and GEN 5

I will let the images tell the story

I his latest email, charger has now been fitted, he also has a full intercooler package from Frozen Boost for cheap - should work fine

His supercharger is clutched and the Ultra light weight version - this will be a very rare mod even in the USA, maybe anywhere in the world, no one really works on the single port motor. His stock dynos were identical to a multiport H6, motor is extremely healthy for power
Attachments
Another ABS view - This customer is in USA
ABS sent to new location
Off with the bumpers so the Intercooler radiator can be fitted
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby Tradewind » Wed Sep 26, 2012 7:46 am

Update images

Self explanatory

Actually I just recieve video of motor running with SC installed, some pipework from charger to intercooler to finish, but this man is making this entire conversion a 3 day process at most - THE MAN
Attachments
photo 6.JPG

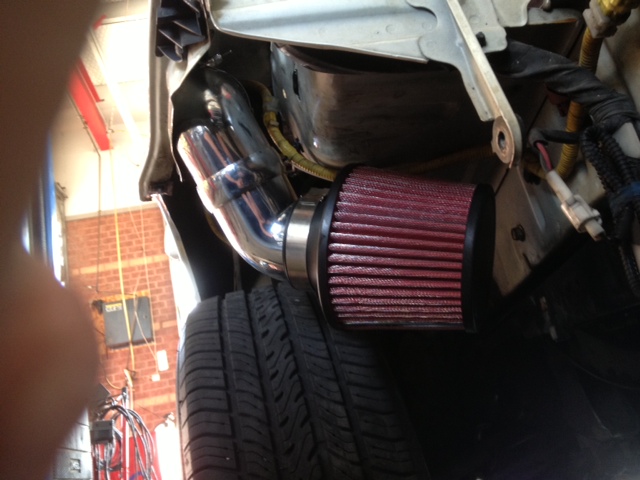

Air intake placement
photo 6.JPG (106.09 KiB) Viewed 4858 times
2015 Liberty 3.6R (6GEN) - Raptor headers and Raptor SUPER MAF
Tradewind

Posts: 2025
Joined: Tue Mar 15, 2011 3:00 pm
Location: Gordonvale Qld
Car: Grey MY15 6GEN 3.6R - Raptor MAF
Real name: Tim

Re: Outback 3.0 w/ single port heads - getting supercharged

Postby valadares » Wed Sep 26, 2012 4:49 pm

OUTBACK power.

Subscribe :angel:
valadares

Posts: 71
Joined: Sat Jun 23, 2012 1:49 am
Car: OUTBACK MY'08 H6 RAPTOR Subarcharged
Real name: vlad
