Outback 3.0 w/ single port heads - SUPERCHARGED

[Tradewind]

Cardoc

The torque is ripping the car apart lol?

After 11 years there are always going to be a few bits needing some refreshing.

See how you go this time.........

[CarDoc]

So, not bad. Fastest was 14.7 @ 94.6. We made 5 runs before heading back to Austin. The Runt made the last two, but sat at the staging line for 30 minutes while they changed a sensor. He had the engine off but kept the pumps and fans running to cool everything down. He didn't flash the lights that they were ready and the announced didn't say anything so I missed getting the vid.

His first run he let off the throttle at the 2-3 shift. He thought something happened. No. I told him to floor it and leave it there for the last one and he ended 14.9 @ 91.

This vid is the second run which was the fastest. I uploaded 4.

http://m.youtube.com/watch?feature=plcp&v=009wmeU1hws

I didn't have my laptop, so no logs of the runs.

[west_minist]

Lovely. Thats confirming somewhat your power is over 240whp. Well done. Thanks in giving me the opportunity to work on your car. It wasn't full support, but was able to get you close to where you want to be. Cheers mate.

[valadares]

Lovely. Thats confirming somewhat your power is over 240whp. Well done. Thanks in giving me the opportunity to work on your car. It wasn't full support, but was able to get you close to where you want to be. Cheers mate.

glad to see it...Respect

[CarDoc]

Thanks Ed. Its continually running great. I installed HID lights in the low beam and fogs yesterday afternoon. Looks great and a lot better for lighting.

[Tradewind]

Intense LIGHT

Must be a big improvement over the original headlamps

[CarDoc]

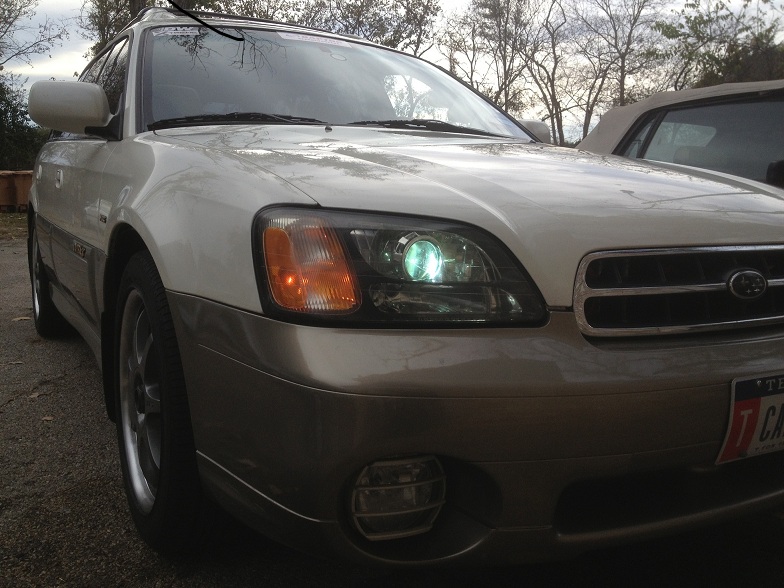

Original


HID


[SH30RB]

I've got a mate who Retrofitted HID's to his Gen 3...

When ever he is driving behind me at night, it looks as if he has his hi beams on at all times. its blinding

[CarDoc]

Super busy at the shop and I spend most of my time on SubaruOutback.org, otherwise I would have kept up over here.

There have been some appearance changes and there will be some updates to the fuel management.

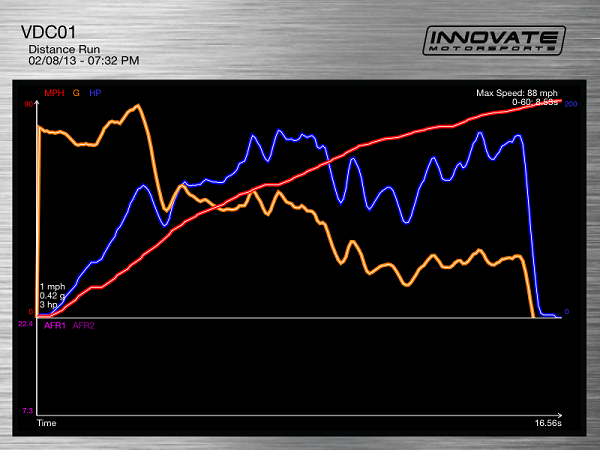

At the moment, the car runs 0-60 in 8.5 (upper right corner of the pic).

Innovate Motorsport OT-2 Dyno App-01 VDCSC

OT-2 Dyno 1.png (172.17 KiB) Viewed 6710 times

I am going to up the injectors to 650 cc. I had a CAT come apart on me, so in the course of things I deleted the CATs altogether to run test on the efficiency of the engine. I have 3 videos up showing efficiency with E85, 93 gasoline and then with the CATs back in. I have room for more fuel. I knew I had room prior, now I know I can bump all 6 injectors. I have a matched/tested set from Deatch Werks. Since they are in Oklahoma City, delivery was quick.

Part One
Part Two
Part Three

The car is back at the transmission shop due to a sticking PR valve. I was running it with a JDM from a Lancaster while the shop fiddled with the OE trying to correct the valve. No go there, so its back to have the Lancaster V-body swapped to the OE trans with new internals and another try at the shift kit to correct 2-3 upshifts. The JDM reacted well, but the soft shift will kill the clutches.

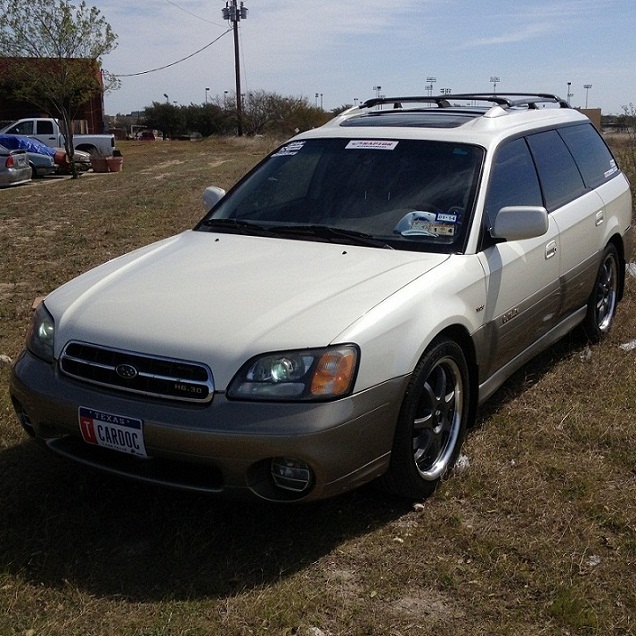

I installed Legacy struts and got a 1.75" drop and mounted 18X8+45 rims. I retained the Outback springs. As expected, handling and braking improved. I also found a front strut bar that fit. I had been trying to find one for months and a guy in California put one up for sale off his Outback sedan. Now I just need to gather the rear suspension.

I also retrofitted projector headlights with Mini H1 from Retro Fit Source. Better lighting, no glaring.

Some pics are here: Subaru Outback - Subaru Outback Forums - cardoc's Album: Subarcharged

And, lastly for now, I found a local shop with a 4 wheel dyno that also specializes in Subaru modification that will put my car up for testing. MZM Performance won't confirm with me so I finally found Pro Tech Performance (PTP Austin) and the guys were piqued to say the least. So when I get it on the dyno, I'll post the results.

[Tradewind]

Another great update

You must have been super busy, I havent heard a thing from you for weeks

Your 5EAT has been a bit of a trial, seems you are getting on top of it

Innovative way to lower ride and increase handling - any pics of the new stance?

[CarDoc]

Another great update

You must have been super busy, I havent heard a thing from you for weeks

Your 5EAT has been a bit of a trial, seems you are getting on top of it

Innovative way to lower ride and increase handling - any pics of the new stance?

4EAT. The tech screwed up a $1200 (USD) valve body. Luckily, I only paid $700 for the JDM. Ha. I'll sell it w/o the valve body later. Its got the VTD center, so someone will need it for a WRX or STI. Maybe a hot rod Outback.



[Tradewind]

We have another single port EZ30D joining the Raptor superchargers list of SC cars - this one in Canada

A sedan this time, Cardoc will have almost a twin when compared under the hood but both cars very different externally

Really pleased to be adding this one - extremely unique these single port engines with SC added

[Tradewind]

There are a few who would like to go down this road for their single port EZ30 however they balk at the effort.

Mike - The man in Canada will be receiving his in a week or so - all shipped

[CarDoc]

I am sure D is going to love the results he's going to get. I need to get some pics of some changes I made to the cooling systems for him so he doesn't waste time on changes later.

The transmission shop finally gave me the car back. The PR was "cocking" in the body and sticking open, so clutches and the TC were damaged. Less than 600 miles on a rebuild. I think it was due to the mod with the kit and the tech doing the work had an oops moment. Used the JDM case, valve body and hard parts; new master kit and shift kit. They had it and drove it for a while to make sure no issues popped up. Shifts are quick and solid. Not hard solid, but the soft shifts are gone. No more 3rd burn?????? We'll see.

Nxst up is the DeatschWerks 650 cc injectors and a new tune. Gonna be a minute on that though. I already have an updated ROM from Ed based on the Latency and flow report.

[west_minist]

Updated graphing on viewtopic.php?f=65&t=18279&p=270050#p270050
