Bad timing

by **Ric** » Thu Oct 18, 2012 10:07 am

Grrr
Car serviced yesterday, CV boot splits today

Had to get it fixed urgently to lead a cruise this Sunday...

by **Robbks** » Thu Oct 18, 2012 10:13 am

always the way.

had one of mine split 2 weeks after having the clutch replaced

by **bosc0** » Thu Oct 18, 2012 11:02 am

Also bad timing.

by **Ric** » Thu Oct 18, 2012 4:57 pm

Replacement CV joint fitted, still trying to get rid of the smell. :bad:

by **zch91** » Thu Oct 18, 2012 7:27 pm

Atleast it happened now rather than on the way to the cruise meeting point? :lol:

by **Ric** » Thu Oct 18, 2012 7:33 pm

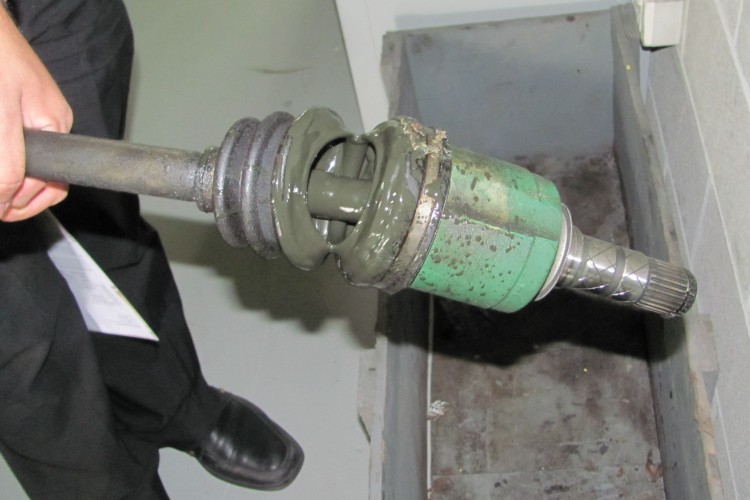

Here's the old one, with what little grease was left inside it.

: Img_3987b.jpg (67.46 KiB) Viewed 5913 times

by **zch91** » Thu Oct 18, 2012 7:40 pm

Bugger.

This is what I did when mine went pop - lost virtually no grease, gave me a few days to source a replacement

Very easy job to DIY incase anyone is wondering.

by **andy85** » Thu Oct 18, 2012 9:15 pm

Bloody hell!!
Just think positive lucky didnt happen half way through the cruise

by **jp928** » Fri Oct 19, 2012 10:53 am

Replaced the whole shaft , or just fitted new boots?
Some great videos on utube about replacing boots without dismantling the joint. Wish I had seen them before I did the 928 boots.
jp 08 gtb 6mt wagon

by **Ric** » Fri Oct 19, 2012 11:08 am

Replaced the whole shaft.
Usually much less labour than just trying to do the boots.

by **Ric** » Fri Oct 19, 2012 10:22 pm

Well the story just took an unexpected twist.
The car went back to Subaru on a flat bed tonight.....
viewtopic.php?p=267909#p267909

by **Corsair** » Fri Oct 19, 2012 11:04 pm

Very sorry to hear that Ric. I hope it can be fixed soon and returned better than ever.

At least you noticed before anything really got out of hand...

by **Ric** » Mon Oct 22, 2012 8:15 pm

Well the story from Subaru is:
The replacement drive-shaft that came from their supplier was a bit longer than it should have been, so the hub nut tightened down on to the end of the thread rather than pressing onto the bearing, allowing the bearing to float around.
This chewed out the spline on the end of the drive shaft and inside the hub, so today they installed a second new drive-shaft, and also completely replaced the whole hub assembly.

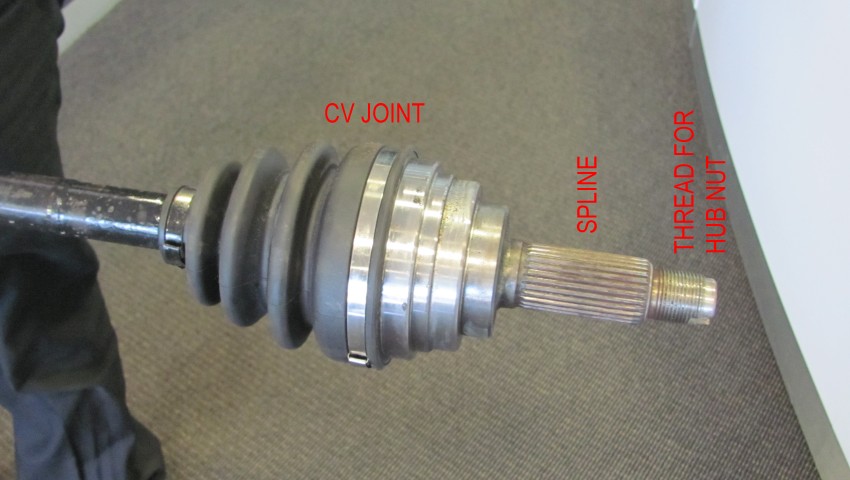

Here is the shaft that was installed last Thursday, that was taken out again today.

: Img_4032B.jpg (73.97 KiB) Viewed 5790 times

... and would you believe, I heard a metal-on-metal scraping noise from the same wheel while driving home tonight. Took the wheel off yet again, and discovered the bottom edge of the metal shield behind the brake disk was rubbing on the disk. Just flexing it away a bit was enough to stop the noise.

by **Dropz** » Tue Oct 23, 2012 7:57 pm

That joint looks fine, however it doesn't look like any Subaru one I've seen.

I've bent those dust covers by accident so many times I can't count, always notice it on the road test though and bend it back off

They are very flimsy.

by **zch91** » Tue Oct 23, 2012 9:56 pm

Those non-genuine shafts are never nice to deal with.. I have been down that road recently.

After all the stuffing around I just ended up rebuilding my original shaft!
