Re: My EZ30 build for real boost

Postby bigBADbenny » Thu Dec 22, 2022 11:31 am

Amazing!
What part of the front diff install went sideways to require pulling the gearset?
User avatar
bigBADbenny

Posts: 10280
Joined: Tue Oct 04, 2011 6:36 pm
Location: Collingwood, Melbourne
Car: MY07 GT-B 6MT OBP Wagon
Real name: Ben Richards
Profile URL: http://tinyurl.com/agvbzop

Re: My EZ30 build for real boost

Postby Taj » Sat Dec 24, 2022 10:33 am

bigBADbenny wrote:Amazing!
What part of the front diff install went sideways to require pulling the gearset?




So in pulling the front clutch housing off (where the front diff lives between the sundials), you remove the 7-or-so main casing bolts that hold both the case and clutch housing together.

I wasn't careful enough in trying to get the clutch housing only to separate (#2 in pic), and the sealant at the main case came away first (#1 in pic). And when I went to seal the main case back up and bolt it back down, something was misaligned and the input/output shafts did not spin. I suspect it was a shift rod misaligned due to it coming apart while laid down horizontal, causing the fork to position the shift collar oddly over a gear - on tear-down I found one of the shift collars was sort of in 'limbo' between the synchro teeth and gear teeth making the clattering noise i'd heard.

Moral of the story, just lay the box horizontally and get it started with some prybars at #2 only.

Maybe I'll write a little bit of an instructional for the diff job - because I did have to piece together some info from multiple sources before I had much of a "walkthrough" instruction set
2007 3.0r Spec B Wagon "FWD911"
GT3582R turbo setup +/- 300awkw
PB: 12.04 @ 120.2mph (Sydney dragway 3/2/21)
https://www.youtube.com/watch?v=YV3e7YHqIYU
https://www.youtube.com/watch?v=9VbfFJJpcz0
(Built engine in the works)
@taj.fwd911 on instagram for more!
User avatar
Taj

Posts: 23
Joined: Tue May 10, 2016 6:47 pm
Location: Sydney
Car: MY07 3.0R spec B Wagon

Re: My EZ30 build for real boost

Postby bigBADbenny » Mon Dec 26, 2022 5:54 am

Thanks for that writeup!
I remember feeling a little overwhelmed just reading the FSM procedure for the front diff job…
User avatar
bigBADbenny

Posts: 10280
Joined: Tue Oct 04, 2011 6:36 pm
Location: Collingwood, Melbourne
Car: MY07 GT-B 6MT OBP Wagon
Real name: Ben Richards
Profile URL: http://tinyurl.com/agvbzop

Re: My EZ30 build for real boost

Postby Taj » Tue Jan 03, 2023 6:48 pm

I got into the old motor that let go today. I stole the intake cams like I'd mentioned earlier to get that combo of the facelift intake cam and pre-facelift exhaust cam.

Here are some pics of the finds, haha!
I found it hilarious I was able to remove the piston & small end, and the rest of the rod thru the bore and block window with the rest of the short-block still together.
Only one bent valve in the head, I could probably even re-use the spark plug :lol:

It hadn't spun that rod bearing, and it actually looked in pretty good condition. Just stress making high power for a skinny rod, for 4-years daily driven I guess.

Screen Shot 2023-01-03 at 7.39.11 pm.png
Screen Shot 2023-01-03 at 7.39.11 pm.png (248.04 KiB) Viewed 240 times


Screen Shot 2023-01-03 at 7.39.19 pm.png
Screen Shot 2023-01-03 at 7.39.19 pm.png (249.43 KiB) Viewed 240 times


Screen Shot 2023-01-03 at 7.39.27 pm.png
Screen Shot 2023-01-03 at 7.39.27 pm.png (227.09 KiB) Viewed 240 times


Screen Shot 2023-01-03 at 7.39.35 pm.png
Screen Shot 2023-01-03 at 7.39.35 pm.png (247.4 KiB) Viewed 240 times


Screen Shot 2023-01-03 at 7.39.50 pm.png
Screen Shot 2023-01-03 at 7.39.50 pm.png (242.91 KiB) Viewed 240 times
2007 3.0r Spec B Wagon "FWD911"
GT3582R turbo setup +/- 300awkw
PB: 12.04 @ 120.2mph (Sydney dragway 3/2/21)
https://www.youtube.com/watch?v=YV3e7YHqIYU
https://www.youtube.com/watch?v=9VbfFJJpcz0
(Built engine in the works)
@taj.fwd911 on instagram for more!
User avatar
Taj

Posts: 23
Joined: Tue May 10, 2016 6:47 pm
Location: Sydney
Car: MY07 3.0R spec B Wagon

Re: My EZ30 build for real boost

Postby Yowie » Wed Jan 04, 2023 3:16 pm

As they say on Mythbusters:

"There's your problem" :lol:
User avatar
Yowie

Posts: 523
Joined: Tue Jul 21, 2015 10:05 pm
Location: Brisbane
Car: SH Forester XT

Re: My EZ30 build for real boost

Postby Taj » Fri Jan 06, 2023 8:55 pm

Gearbox back in yesterday, now that an input shaft seal had turned up (damaged the old one slightly during reassembly). Really easy changeover.

Deleted all the now redundant brackets and wiring for the O2 sensors which reduces clutter down there a bit and gives dump pipe installation a bit more room.

Also, new rear diff bushes for the snout support bit, steering rack bushes and mounts, solid/brass bush shifter knuckle, machined stainless reverse lockout collar made by a friend over in NZ also with a turbo EZ.

That gearbox jack attachment is a godsend! Made it very easy to do solo. Was only $50 or so from ebay.

Screen Shot 2023-01-06 at 9.46.07 pm.png
Screen Shot 2023-01-06 at 9.46.07 pm.png (237.95 KiB) Viewed 201 times

Screen Shot 2023-01-06 at 9.46.22 pm.png
Screen Shot 2023-01-06 at 9.46.22 pm.png (242.79 KiB) Viewed 201 times

Screen Shot 2023-01-06 at 9.46.45 pm.png
Screen Shot 2023-01-06 at 9.46.45 pm.png (238.51 KiB) Viewed 201 times

Screen Shot 2023-01-06 at 9.47.00 pm.png
Screen Shot 2023-01-06 at 9.47.00 pm.png (247.36 KiB) Viewed 201 times
Attachments
Screen Shot 2023-01-06 at 9.46.36 pm.png
Screen Shot 2023-01-06 at 9.46.36 pm.png (241.47 KiB) Viewed 201 times
Last edited by Taj on Thu Jan 26, 2023 7:21 pm, edited 2 times in total.
2007 3.0r Spec B Wagon "FWD911"
GT3582R turbo setup +/- 300awkw
PB: 12.04 @ 120.2mph (Sydney dragway 3/2/21)
https://www.youtube.com/watch?v=YV3e7YHqIYU
https://www.youtube.com/watch?v=9VbfFJJpcz0
(Built engine in the works)
@taj.fwd911 on instagram for more!
User avatar
Taj

Posts: 23
Joined: Tue May 10, 2016 6:47 pm
Location: Sydney
Car: MY07 3.0R spec B Wagon

Re: My EZ30 build for real boost

Postby bigBADbenny » Sat Jan 21, 2023 9:47 am

Hopefully the one piece lockout is less likely to rattle due to the extra weight?

If so, I might upgrade…
User avatar
bigBADbenny

Posts: 10280
Joined: Tue Oct 04, 2011 6:36 pm
Location: Collingwood, Melbourne
Car: MY07 GT-B 6MT OBP Wagon
Real name: Ben Richards
Profile URL: http://tinyurl.com/agvbzop

Re: My EZ30 build for real boost

Postby Taj » Thu Jan 26, 2023 4:43 pm

I'm running out of stuff to do while waiting to be able to put an engine together now...

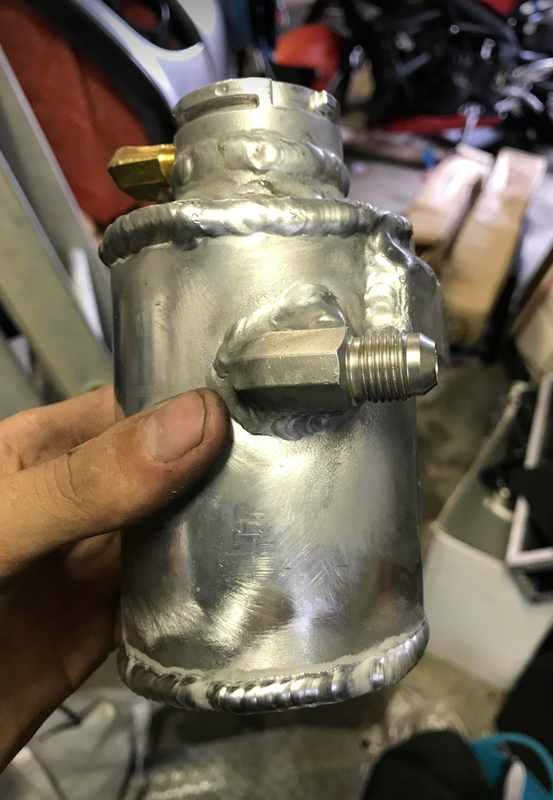

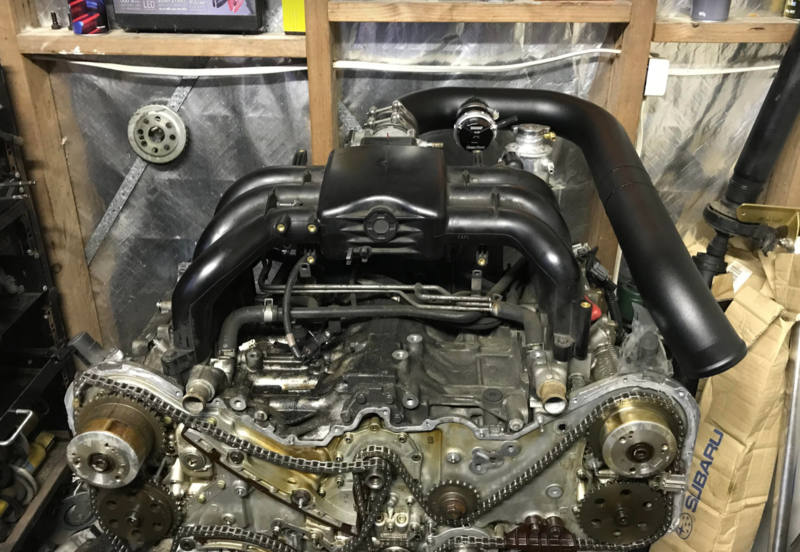

I made my own header tank for the coolant system to give it a nice high-point / air collection point (now it's with a powder coater so it matches the piping).
I'm really enjoying the AC TIG lately, and I think I'm getting somewhat decent at it!


I also ordered a rebuild/upgrade set of plates and belleville washers for my plated LSD R180 rear diff from Serbia so I'd have something else to keep me busy... That'll give me a nice little side-quest once that turns up.

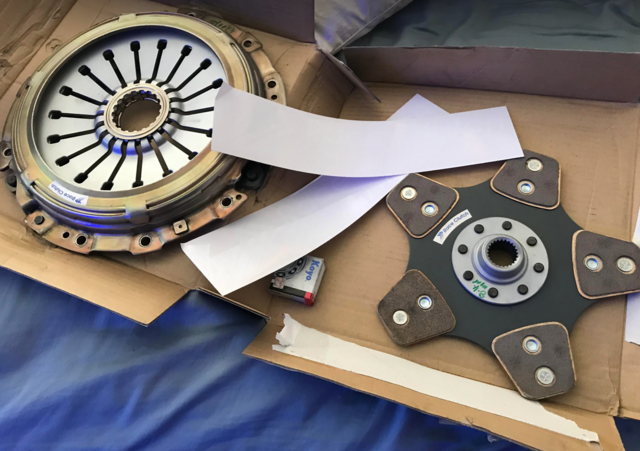

My clutch arrived back with me yesterday, I sent it back up to Jim Berry for a refresh while it was out. He also changed the diaphragm to a stronger one, it's now set at 4200lb clamp force up from 3400lb. Jim is a real legend... Great price, quick turnaround time, and an awesome teacher over the phone as anyone who's spoken to him will know:

Now I can send the balancer, crankshaft, flywheel, clutch assembly to all be precision balanced together. That should be the last outsourced process before I'm able to start assembling! The heads are looking awesome... can't wait to share a bunch of photos of them.
