MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby turner_822 » Wed Aug 29, 2012 5:21 pm

Hey,

I got this car at a great price (95,000km on the clock) so ever since then I have been looking to spend what I saved to make it something special. I have since decided on a intercooled supercharger from Raptor Superchargers. http://www.raptorsc.com.au/
So far I been trying out a few things with the car such as:

-Front and rear strut bars
-Lightweight crank pulley
-Cold air intake
-Tuning by west_minist (Edward Millington) of Xtreme Racing Tuning http://www.xtremeracingtuning.com/
http://forum.liberty.asn.au/viewtopic.php?f=15&t=13414
-X-Force 2.25 inch cat-back system including hi-flow cat

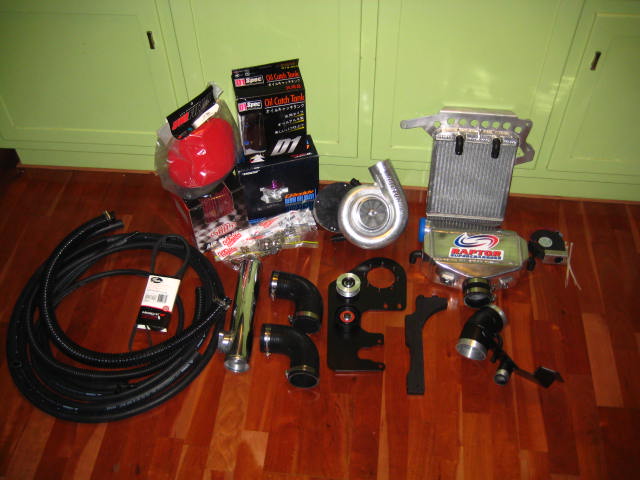

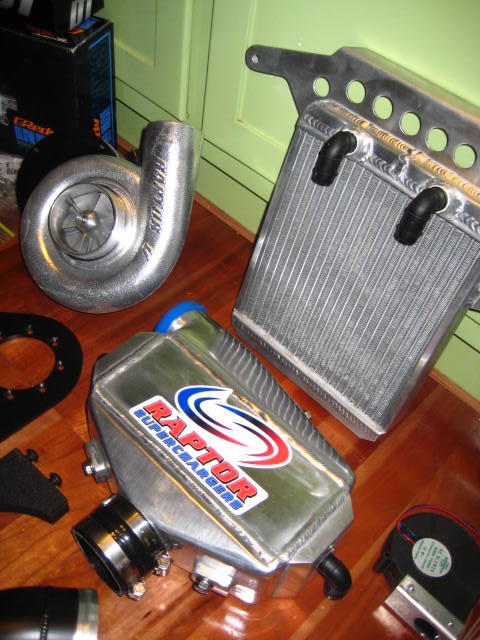

For the SC, I have had to get a few things done:

-WRX injectors
-OMNI (3 bar) MAP sensor
-Innovate Guages for oil temp/pressure http://www.innovatemotorsports.com/products/MTXD.php and wideband http://www.innovatemotorsports.com/products/MTXL.php

west_minist pointed me in the right direction with the guages and what needed upgrading and provided the roms to get the injectors and MAP sensor working. Most of the SC kit arrived today and I felt like a kid at Christmas unwrapping it all. I plan to get this all together over the next few weeks and again, west_minist will be doing the tuning and i'm sure he will post the graphs :)

stay tuned!!
Attachments

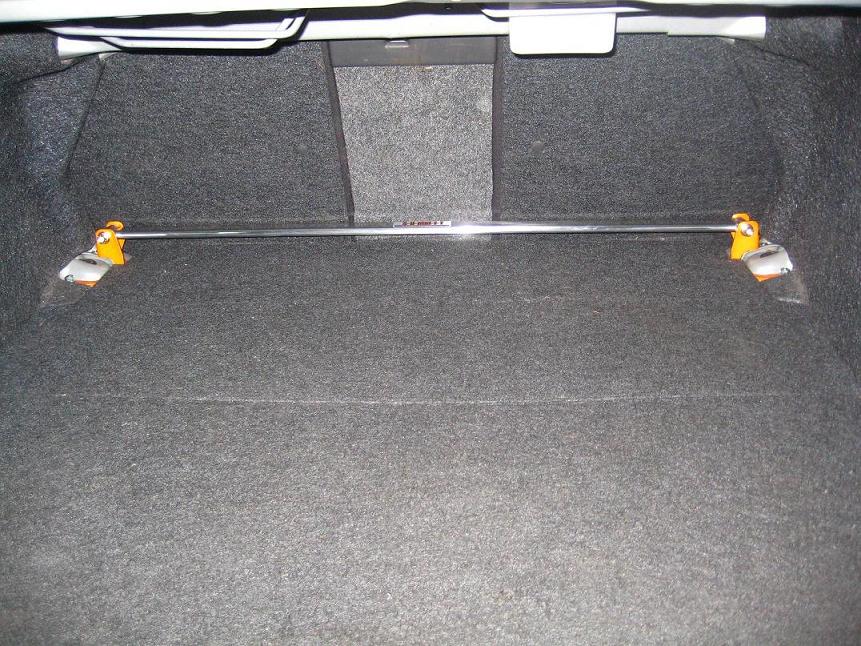

Rear Strut.JPG
Rear Strut.JPG (147.23 KiB) Viewed 9892 times

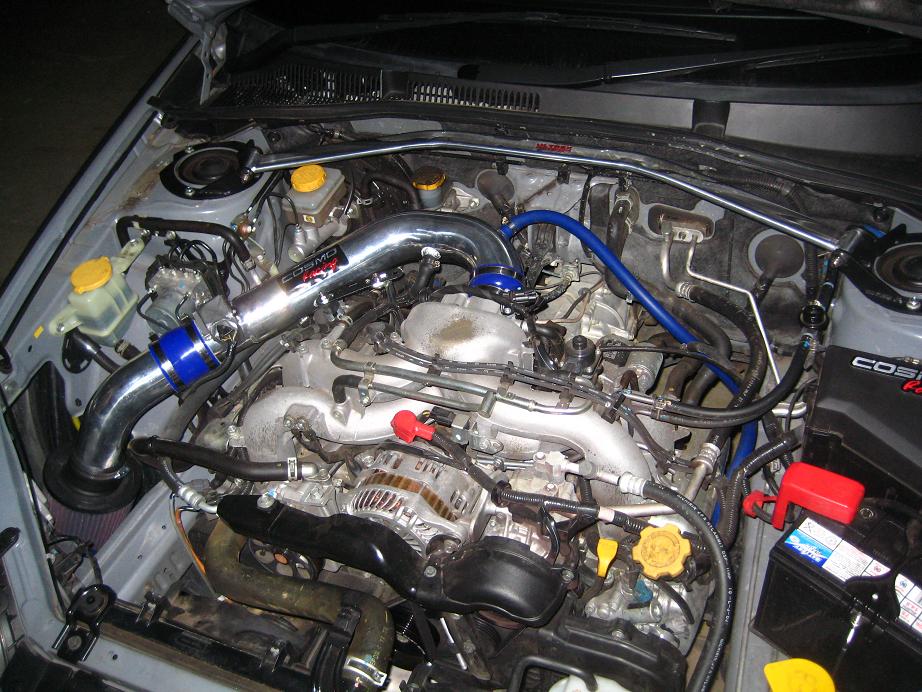

Engine Bay.JPG
Engine Bay.JPG (139.42 KiB) Viewed 9893 times
Last edited by turner_822 on Sun Oct 25, 2015 6:29 pm, edited 4 times in total.
User avatar
turner_822

Posts: 136
Joined: Sat Jul 14, 2012 7:31 am
Location: Toowoomba - QLD - 4350
Car: Silver MY08 - 2.5 Supercharged
Real name: Nick

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby mynameisdaniel » Wed Aug 29, 2012 5:43 pm

Subscribing!

What sort of power output are you expecting/hoping for?
User avatar
mynameisdaniel

Posts: 1224
Joined: Mon Jun 13, 2011 1:47 pm
Location: Adelaide, Australia
Car: 07 Subaru Liberty GT tbSTi Sedan
Real name: May or may not be Daniel
Profile URL: viewtopic.php?f=10&t=15835

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby dmh87 » Wed Aug 29, 2012 9:04 pm

mynameisdaniel wrote:Subscribing!

+1
Best of luck with the build :)
dmh87
-stickered-

Posts: 252
Joined: Fri Jun 25, 2010 7:40 am
Location: Melbourne/Sydney
Real name: huy

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby rooby » Wed Aug 29, 2012 9:12 pm

It'll be good to see how it pans out.

Is this the first raptor 2.5 on the forum?
User avatar
rooby

Posts: 2186
Joined: Tue May 31, 2011 12:09 am
Location: Canberra
Car: MY07 Liberty GT Spec.B
Real name: Reuben

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby SH30RB » Wed Aug 29, 2012 9:14 pm

hmm... this is going to be an interesting build!

im watching this one!

oh and get ready for all the 'haters' who will say ' you should have just gotten a GT' and the like...
TEAM FUNERAL HEARSE!
Only slightly modified, I swear!
User avatar
SH30RB
-stickered-

Posts: 4024
Joined: Sun Aug 07, 2011 8:32 pm
Location: Sydney
Car: 05 Liberty 3.0R-B wagon
Real name: Simon
Profile URL: viewtopic.php?f=10&t=14766

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby turner_822 » Wed Aug 29, 2012 10:53 pm

SH30RB wrote:oh and get ready for all the 'haters' who will say ' you should have just gotten a GT' and the like...

I'm aware that the price makes the GT the obvious choice and its much safer then boosting an NA engine...respect! but I got this car cheap and I wanted to try something different and learn as much as possible in the process.
rooby wrote:Is this the first raptor 2.5 on the forum?

I found one other SC build that sort of gave me the inspiration. That and the youtube videos ;)
http://forum.liberty.asn.au/viewtopic.php?f=15&t=14553
mynameisdaniel wrote:What sort of power output are you expecting/hoping for?

I'm not sure on power gains, west_minist will be able to give you a better idea of what he wants to achieve with the tuning. The topic above has a dyno graph showing 151 wheel kW.
User avatar
turner_822

Posts: 136
Joined: Sat Jul 14, 2012 7:31 am
Location: Toowoomba - QLD - 4350
Car: Silver MY08 - 2.5 Supercharged
Real name: Nick

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby jslayz » Wed Aug 29, 2012 11:59 pm

Good luck nick, interested to see how you go.

J
CURRENT - ATP GTX 3576 - 22psi - 283.7awkw
OLD - Dom 1.5Xtr - Last dyno 254ahkw, previous 238ahkw, first 224awkw.
My journey thread: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523
My Lib Pics here: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523&start=570#p370656
User avatar
jslayz

Posts: 2810
Joined: Tue Mar 09, 2010 11:32 pm
Location: Perthhhhhh
Car: 2005 Liberty GT Wagon
Real name: J

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby Victripper » Thu Aug 30, 2012 3:29 pm

Looks like an impressive build. I hope that the it all goes well.
User avatar
Victripper

Posts: 351
Joined: Sun May 22, 2011 2:38 pm
Location: Melbourne
Car: MY12 Liberty Sports Premium Wg 2.5i
Real name: Mark

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby Corsair » Fri Aug 31, 2012 6:23 pm

Excellent effort! Best of luck and look forward to hearing how it goes.

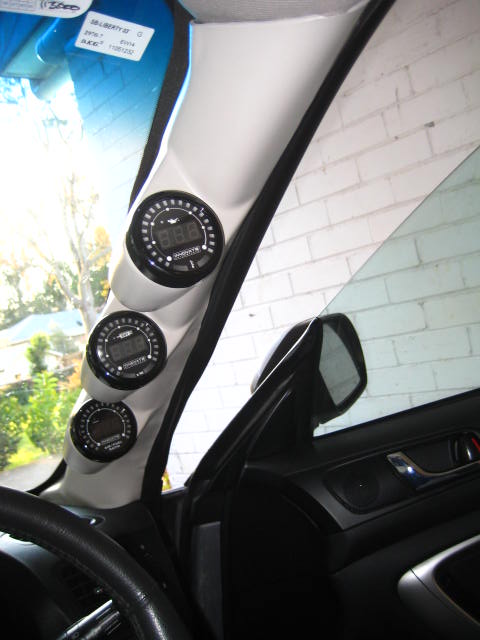

BTW, the gauges look great and blend into the A pillar very well. :ok:
I got this plan. It's called 'Save Ass'. And the way it works is this - I slip outta one of these windows and I run like a bastard!
User avatar
Corsair
-stickered-

Posts: 953
Joined: Sun Sep 18, 2011 12:01 am
Location: Melbourne
Car: MY09 Liberty 2.5i
Profile URL: viewtopic.php?f=10&t=15709

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby blademaster » Sun Sep 02, 2012 2:41 pm

good luck with the build dude =) be good to have another SC'd lib on here
Question, do you have a Hitachi ECU or Denso (or equivalent) ECU?

oh also, are you currently running a dual-mass or single mass flywheel?
I can recommend that you change to a single mass + organic HD clutch
and if you have the cash lying around, goto a 6MT box (i made the change and it is a waaaay better box than the 5MT)
2004 Black 2.5 Supercharged Liberty Sedan
2006 Blue 3.0R-B Liberty Wagon
1998 Silver 2.5 Bilstein Edition Liberty Sedan
1998 Dark Blue 2.5 Liberty Wagon
1994 White 1.3 Suzuki Swift Sedan
1998 Light Blue 2.6 Turbo Diesel Land Rover Discovery Tank
User avatar
blademaster

Posts: 402
Joined: Sat Nov 08, 2008 10:26 am
Location: Perth, WA
Car: 2004 Liberty 2.5S, Black
Real name: Fudz

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby blademaster » Sun Sep 02, 2012 2:56 pm

Also, are you able to get the engine bay shot from the reverse angle?? I just want to have a closer look at where some of your hosing goes

turner_822 wrote:
Engine Bay.JPG
Engine Bay.JPG (139.42 KiB) Viewed 9741 times
2004 Black 2.5 Supercharged Liberty Sedan
2006 Blue 3.0R-B Liberty Wagon
1998 Silver 2.5 Bilstein Edition Liberty Sedan
1998 Dark Blue 2.5 Liberty Wagon
1994 White 1.3 Suzuki Swift Sedan
1998 Light Blue 2.6 Turbo Diesel Land Rover Discovery Tank
User avatar
blademaster

Posts: 402
Joined: Sat Nov 08, 2008 10:26 am
Location: Perth, WA
Car: 2004 Liberty 2.5S, Black
Real name: Fudz

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby turner_822 » Mon Sep 03, 2012 1:52 pm

blademaster wrote:good luck with the build dude =) be good to have another SC'd lib on here
Question, do you have a Hitachi ECU or Denso (or equivalent) ECU?

oh also, are you currently running a dual-mass or single mass flywheel?
I can recommend that you change to a single mass + organic HD clutch
and if you have the cash lying around, goto a 6MT box (i made the change and it is a waaaay better box than the 5MT)

Thanks for the good advice!! I am still thinking on what to spend money on next...either brakes/suspension/bars or 6MT/HD cluthch+SM flywheel. Wish I could do both but this build has taken a nice chunk out of the savings so the drive upgrade might have to wait. Alllllso want to complete the exhaust system, I started with hi-flow cat and the back system but still need to replace headers...I put it on my "to do list" because I didn't plan on SC...then I saw pictures and changed my mind lol.

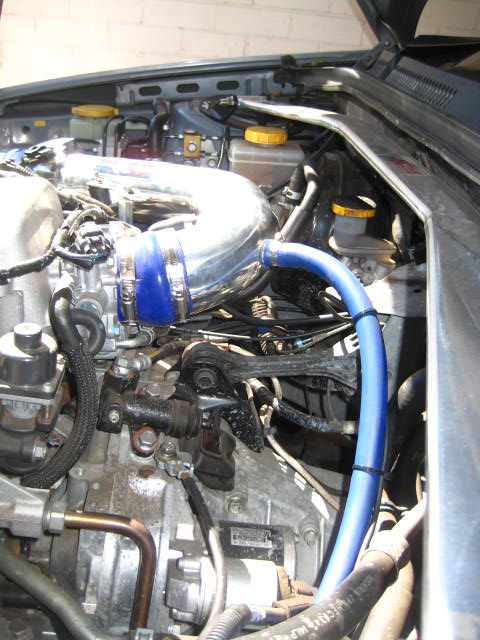

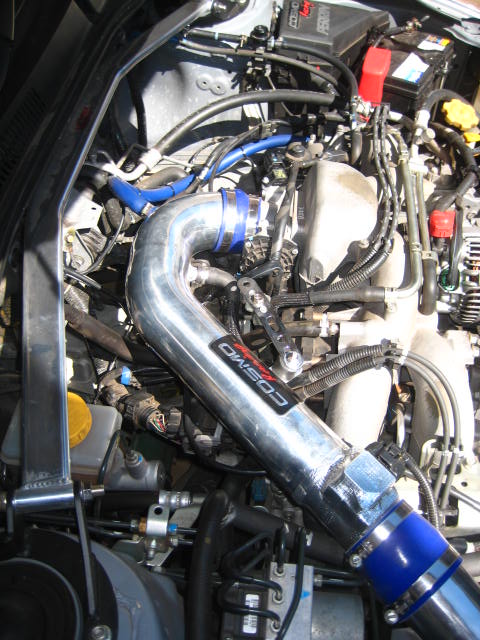

ECU is Denso. Here's a couple of extra pics I had handy of the engine bay (in dire need of a detail...)
Attachments
User avatar
turner_822

Posts: 136
Joined: Sat Jul 14, 2012 7:31 am
Location: Toowoomba - QLD - 4350
Car: Silver MY08 - 2.5 Supercharged
Real name: Nick

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby west_minist » Tue Sep 04, 2012 7:59 am

I would advice on brakes and the clutch, including pressure plate if available.

Would seriously recommend the Brembo upgrade (small upgrade in my opinion, since these do not last even on an STI)

All the best in spending and chose wisely.
User avatar
west_minist

Posts: 1128
Joined: Sat Oct 18, 2008 1:51 pm
Location: Barbados
Car: 2000 Subaru Impreza 2R 4EAT

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby blademaster » Tue Sep 04, 2012 11:10 pm

turner_822 wrote:either brakes/suspension/bars or 6MT/HD cluthch+SM flywheel.
+1 to what Edward said. Get some decent DBA rotors and some nice pads if you can't afford bigger callipers/rotors
Then go the swaybars and HD clutch/SM Fwheel. Be aware that if you are going 6MT, you will have to change out the clutch and Fwheel again =)

turner_822 wrote:Alllllso want to complete the exhaust system
Hmm, this is a strange one. If you leave it till after the SC, you may need a retune (thoughts Edward?)

turner_822 wrote:ECU is Denso.
Win! Mine was Hitachi, thus had to be replaced :cry:

OK! Now to the fun stuff. Apologies in advance for the photos, as I took them in the garage just now using the phone torch as a spotlight

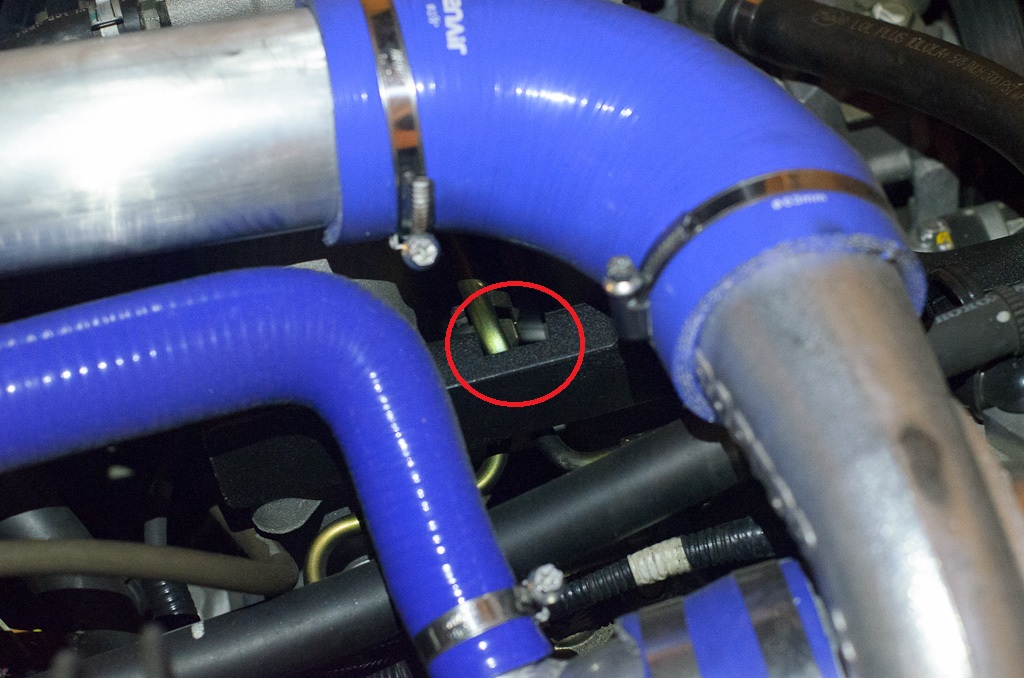

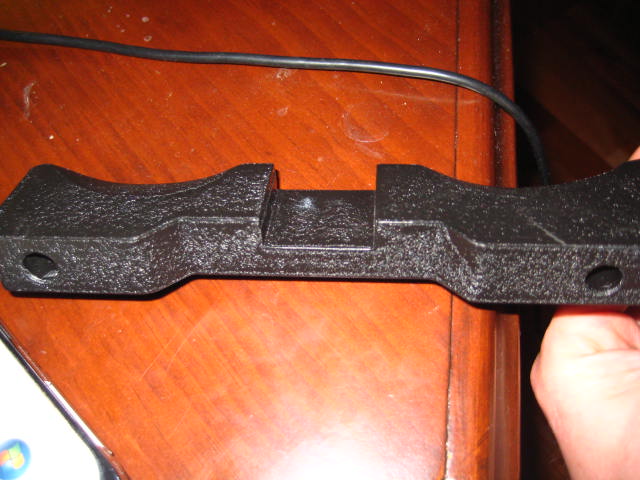

Raptor shipped you a mounting bracket that bolts to the manifold, in your pic, it is under the WTA cooler (kinda looks like a gun). If this is the same bracket as was shipped to me, it will need to be modified (either yourself or sent back to raptor). It will need a notch machined out of it so it clears a fuel rail:

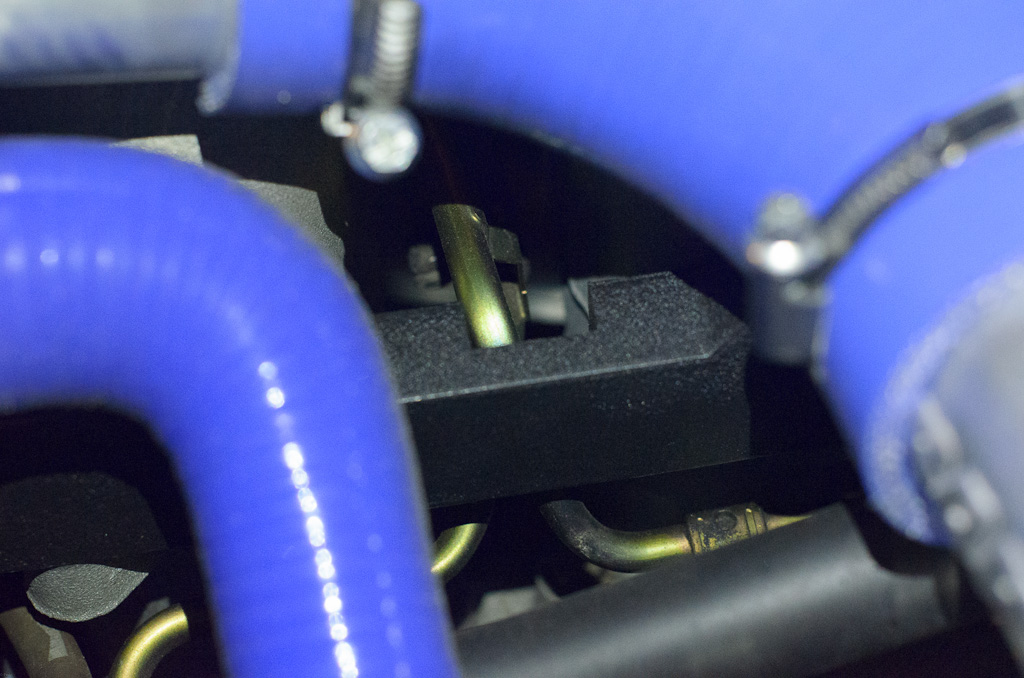

And closer

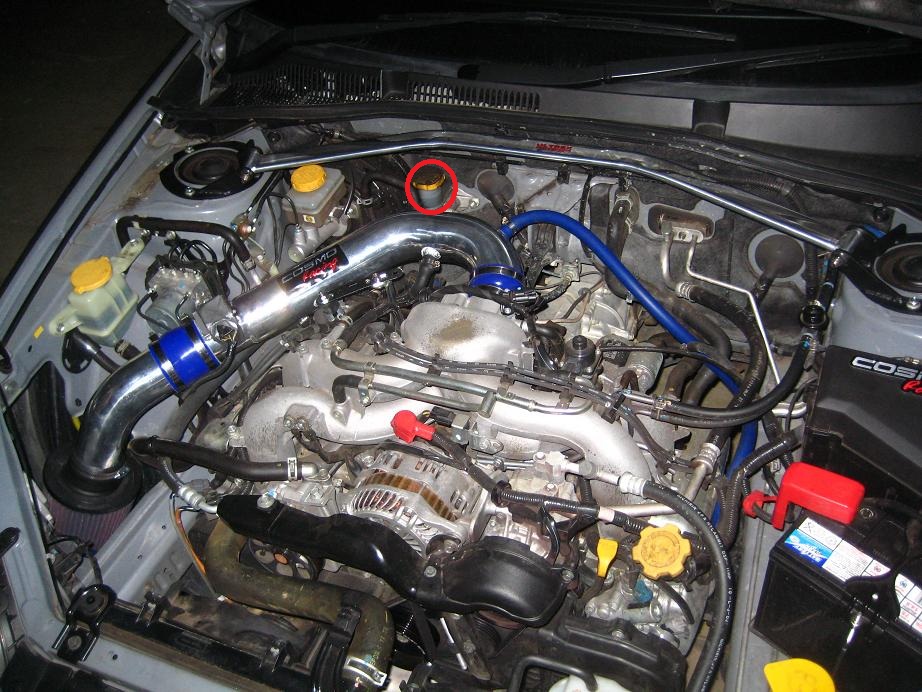

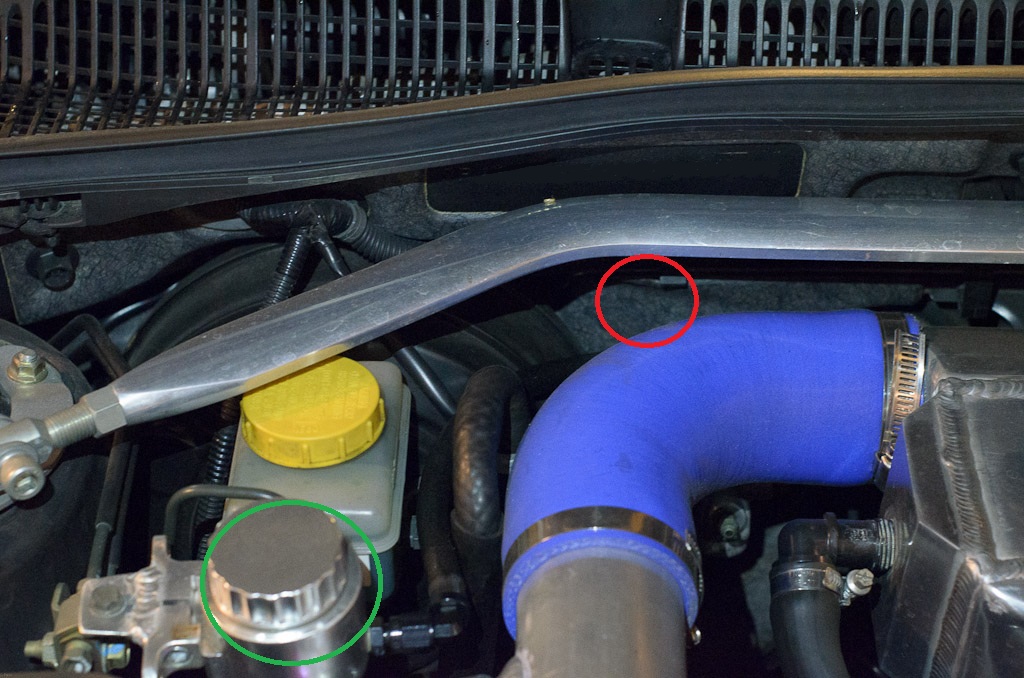

Next up, in your engine bay photo, I can clearly see the clutch reservoir located just underneath your brace
Engine Bay.JPG
Engine Bay.JPG (248.3 KiB) Viewed 9658 times

This will have to be moved. In my install, it was near-abouts where yours is (red circle) to here (green circle)


ALSO in your engine bay, these 2 hoses coming out of your block
Engine Bay2.JPG
Engine Bay2.JPG (247.97 KiB) Viewed 9658 times

Will need to be rerouted slightly

Maybe I should have taken that photo a bit better =)

Unfortunately, our motor is slightly different to the Impreza motors, so its not a straight-forward install

Pop the bonnet and start sizing up where the brackets/hose/piping are going to mount, and please let me know if you think you are going to have similar issues :)
2004 Black 2.5 Supercharged Liberty Sedan
2006 Blue 3.0R-B Liberty Wagon
1998 Silver 2.5 Bilstein Edition Liberty Sedan
1998 Dark Blue 2.5 Liberty Wagon
1994 White 1.3 Suzuki Swift Sedan
1998 Light Blue 2.6 Turbo Diesel Land Rover Discovery Tank
User avatar
blademaster

Posts: 402
Joined: Sat Nov 08, 2008 10:26 am
Location: Perth, WA
Car: 2004 Liberty 2.5S, Black
Real name: Fudz

Re: MY08 Subaru Liberty SUPERCHARGER BUILD (2.5i 5MT ADM)

Postby turner_822 » Wed Sep 05, 2012 8:31 pm

blademaster wrote:Raptor shipped you a mounting bracket that bolts to the manifold, in your pic, it is under the WTA cooler (kinda looks like a gun). If this is the same bracket as was shipped to me, it will need to be modified (either yourself or sent back to raptor). It will need a notch machined out of it so it clears a fuel rail:

blademaster wrote:in your engine bay photo, I can clearly see the clutch reservoir located just underneath your brace. This will have to be moved. In my install, it was near-abouts where yours is.

blademaster wrote:ALSO in your engine bay, these 2 hoses coming out of your block

Unfortunately, our motor is slightly different to the Impreza motors, so its not a straight-forward install

Pop the bonnet and start sizing up where the brackets/hose/piping are going to mount, and please let me know if you think you are going to have similar issues :)


Hey Blademaster, thanks for the advice! Its much appreciated. Funnily enough I had poured through those exact photos and came to the same conclusion RE: 2 hoses coming out of block and clutch reservoir. They will have to be moved a little *sighs* but like you said, big win with the Denso!

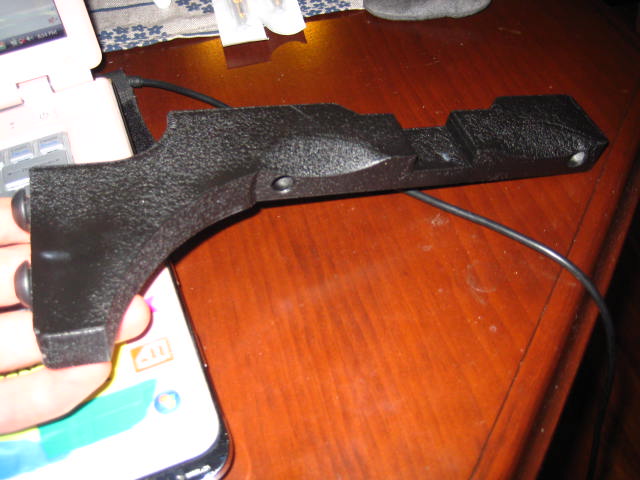

Raptor SC were pretty picky about pictures around the injector shield and I believe they have added the extra notch
