Member Profile-(Libacy Gt) Gen V Gt AUTO Wagon

Postby Libacy Gt » Thu Dec 15, 2016 1:27 pm

Hi

I purchased a 2010 (my11) Liberty Gt wagon , Auto, in mid october 2016, Previously had a 2004 Outback H6. Great cars. I have been a member since mid october 2016 and have done a few mods since. I haven't taken any pics of my car yet, Its just the stock standard Steel Silver 2010 Gt wagon. I thought i'd post the Mods with part numbers where applicable which may be of help to someone. Forum members have been great, always willing to help and give advice. Its been a challenge sourcing parts for the Gen V.

For now I am basically going to do as much as i can performance wise up until i have to start playing around with engine internals. I will have to keep an extra close eye on radiator temps and transmission slippage and other relevant info to ensure this setup will last a while on the stock engine and transmission without blowing anything up :)




UPDATE 1: 4-5-17 - DYNO on Stock Engine with below Mods : (page 2) viewtopic.php?f=10&t=34162&start=15
UPDATE 2: 7-6-17 - Blew stock engine: (page 3) viewtopic.php?f=10&t=34162&start=30
UPDATE 3: 6-10-17 NEW Built ENGINE (page 6) viewtopic.php?f=10&t=34162&start=75



Below are the Mods

ENGINE

ID 1000cc injectors (1000.48.11.WRX.4)
DW300, 340 L/h fuel pump (9-301S-1005)
TurboSmart Kompact BPV , fully recirculating (TS-0203-1209)
AVO top mount intercooler-ceramic coated sides (S1B10M04A002T)
Apexi air filter, (no need to oil) (503-F101)
3port Grimmspeed boost controller (57046)
mishimoto transmission cooler
Racer X engineering Charge pipe for intercooler kit: (10-14LGTCP)
PWR Alloy 42mm Radiator (6491)
Mishimoto compact baffled oil catch can , 3 port (mmbcc-msthr-bk) Custom made Baffled 3port catch can by All Drive Suabru
Mishimoto catch can drain kit (MMBCC-DRAIN-02)

TUNE:
Les Sharp (Les sharp open source tuning based in Taiwan, e-tunes.) All Drive Subaru custom Tune


TURBO
18gtx Vf54 housing , TD05h, Hybrid Turbo Stock Turbo for now

EXHAUST

Avo dump pipe- fully ceramic coated (S1B10M3LAMETI)
Avo Stainless Mid pipe


Suspension/ Handling

whiteline Front sway bar 24mm (BSF41Z)
whiteline Rear 24mm sway bar Kit (BSR49XXZ)
whiteline Front (KLC172) and rear (KLC182) end links
Whiteline Anti lift kit (KCA334)
Whiteline Front lower control arm bushes (WO506)
Hardrace engine mounts: (7751 & 7720)
Hardrace Transmission mount: (7737)
whiteline rear diff inserts (KDT927)

Brakes

Dba T3 4000 rotors Front (DBA42650S) & rear (DBA42663S)
Dixcell Type M pads Front (361075) & rear (365085)
Goodridge front and rear Braided brake lines ( 24220 )

Electronics
AEM UEGO WB02 AFR Gauge and sensor (connected for logging)


To install soon
Neoplot brake Master cylinder stopper ( NP12610L )
Front/rear strut bar (still looking for rear strut bar that will fit flush under cargo floor without modding anything)

Future mods
Brembo brake calipers
Last edited by Libacy Gt on Wed May 23, 2018 9:10 am, edited 11 times in total.
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby applegeek897 » Fri Dec 16, 2016 8:37 am

Cool man, sounds like you've got some awesome stuff already sorted.
Daily: '00 Daihatsu Cuore "Kelly" - Build Thread -
Project / Weekender: '05 Subaru Liberty 3.0R-B Wagon - Build Thread -
Motorcycle: '14 Triumph Street Triple 660 - Build Thread -
User avatar
applegeek897

Posts: 219
Joined: Sun Jun 07, 2015 1:02 am
Location: Sydney, NSW
Car: 05' 3R-B Wagon, 00' Daihatsu Cuore
Real name: James
Profile URL: viewtopic.php?f=10&t=31247

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Fri Dec 16, 2016 9:57 am

applegeek897 wrote:Cool man, sounds like you've got some awesome stuff already sorted.


thanks , just a mild, calculated build for now. will see what happens in the future.
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Fri Jan 06, 2017 5:32 pm

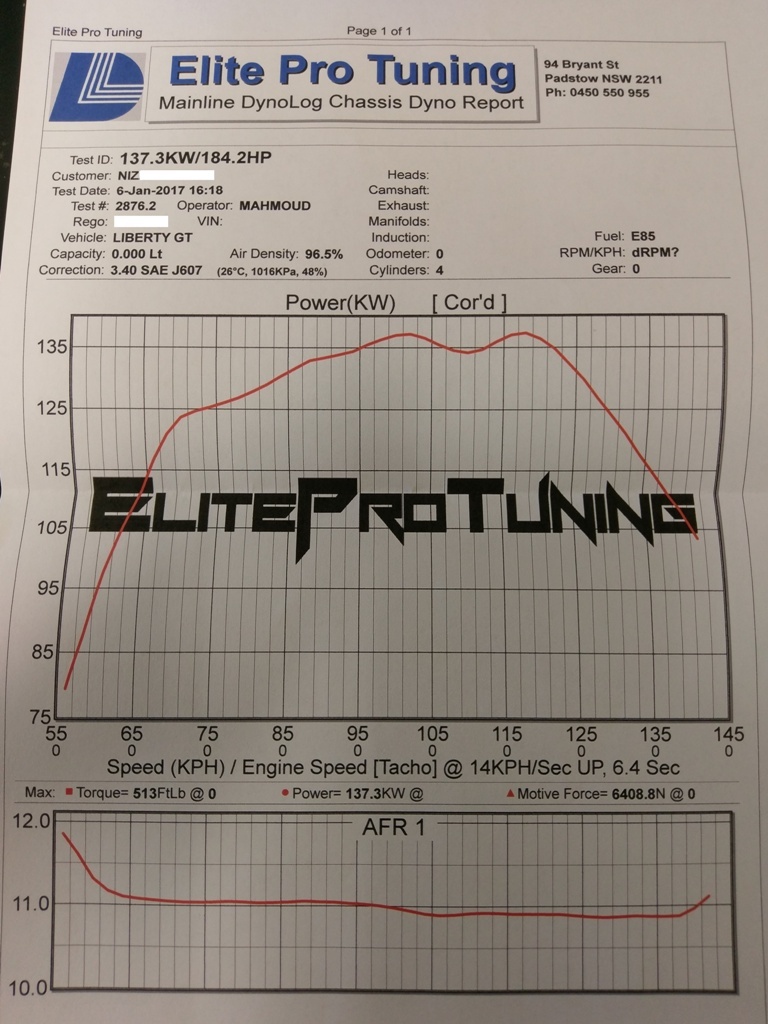

i finally got the final tune with Matt (kiDO) on e85 after all the mods. I have not noticed much of a difference in power compared to when it was just stock+ a tune, which has really surprised me actually. Had i known that i would not get much of a difference at all with the added upgrades , especially with e85, then i would have just kept the stock engine + the tune.

I did a dyno just so i can confirm figures seeing as there are so many number flying around forums without any graphs. Even though my car is an Auto, i am not sure why some people suggest these cars achieve at-least 185kw (matt said 200kw + on e85) with the basic Mods that i upgraded + a tune.

although the power is nice right from the start, it quickly flats out. It only has good punch @2500 rpm or so where most of the power comes on. (dyno guy couldn't attach rpm reading for some reason) Its running 19lb boost, i will be emailed the sheet including the boost reading shortly.
Attachments
Lib Gt 2010 Auto Dyno.jpg
Lib Gt 2010 Auto Dyno.jpg (248.14 KiB) Viewed 3286 times
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby vinshonz » Fri Jan 06, 2017 6:31 pm

stock liberty gts get about that power

definitely somethings not right

also if its on e85 AFR's should be on a higher side of 12''s?
that dyno graph shows its about 11 all the way hmmm?

correct me if im wrong
2008 Liberty GT Tuned by STi 27 of 250 made
PnP VF52, AVO TBE into TCP-Ti Mufflers, AVO panel filter, Mishimoto TMIC, Turbosmart Kompact BOV, Kobe Silicone Intake + SFB, Kobe 340LPH pump,
Tuspeed 3Port, Exedy HD + lightened flywheel, some Whiteline bits & Corgiwerx bits - KiDo tuned

2007 WRX Tuned by STi 35 of 200 made
STi Spec C TMIC+ProcessWest splitter, AVO TBE, X3E Silicone Intake, APS CAI, TurboSmart Kompact, Walbro, GrimmSpeed 3 Port, DEFI gauges
TD05-18G 198.5kw on RTRs Dyno - SOLD
vinshonz

Posts: 215
Joined: Tue Mar 22, 2016 6:53 am
Location: SE MELB
Car: 2008 Liberty GT TunedBySTi
Real name: Vincent

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Surge » Fri Jan 06, 2017 7:13 pm

Interesting to see the graph. Can't believe how low the power figure is considering e85.

Maybe that just goes to show how bad the auto is.
DIY romraider E85 tuned Subaru liberty GT Premium 2010 Auto.
New project: Lexus Soarer 2.5gtt jzz30 1992

[ACT]Free Tune help- Learning view, Romraider, ECU Flash
User avatar
Surge

Posts: 794
Joined: Sat Dec 08, 2012 1:28 pm
Location: ACT
Car: 2010 lib GT premium + Jzz30 soarer

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Fri Jan 06, 2017 8:54 pm

vinshonz wrote:stock liberty gts get about that power

definitely somethings not right

also if its on e85 AFR's should be on a higher side of 12''s?
that dyno graph shows its about 11 all the way hmmm?

correct me if im wrong


you are right, Dyno guy who is also a Tuner mentioned that it should be around the 12's as well as Matt but still wont be too much more power anyway i believe.
Last edited by Libacy Gt on Fri Jan 06, 2017 9:01 pm, edited 1 time in total.
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby jslayz » Fri Jan 06, 2017 8:57 pm

The %eat auto logice was eating plenty of power on mine until I changed....
CURRENT - ATP GTX 3576 - 22psi - 283.7awkw
OLD - Dom 1.5Xtr - Last dyno 254ahkw, previous 238ahkw, first 224awkw.
My journey thread: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523
My Lib Pics here: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523&start=570#p370656
User avatar
jslayz

Posts: 2810
Joined: Tue Mar 09, 2010 11:32 pm
Location: Perthhhhhh
Car: 2005 Liberty GT Wagon
Real name: J

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Fri Jan 06, 2017 8:58 pm

Surge wrote:Interesting to see the graph. Can't believe how low the power figure is considering e85.

Maybe that just goes to show how bad the auto is.


yes for me it was very interesting because of my high expectations due to the forum and my lack of understanding, but i will try and get to the bottom of this if there is an issue, but i dont think there is , other then it running a little rich the car health wise is great, no known issues. Maybe the autos suffer big time from power, i would not know until i get other people to dyno their similar modded auto Gen V's
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Fri Jan 06, 2017 9:02 pm

jslayz wrote:The %eat auto logice was eating plenty of power on mine until I changed....



what is the "%eat auto logice" ?
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby jarrenowen » Sat Jan 07, 2017 10:54 am

hmm i think something is wrong... i made 125kw with the stock tune, and then 175kw after a retune + hks filter.
then went 3in tbe into stock muffs, inlet, few other bits and bobs & did 184kw... Stock muffs holding me back and also it was 33degree ambient temp.
i'd double check all your vac lines and maybe log it and see if you can find anything, because even though mine is manual it still should be pretty up there near what matt said around 185...
jarrenowen

Posts: 226
Joined: Tue Jun 09, 2015 12:48 pm
Location: Newcastle
Car: 2007 Liberty Gt Spec.B
Real name: Jarren
Profile URL: viewtopic.php?f=10&t=31061

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Sat Jan 07, 2017 11:05 am

jarrenowen wrote:hmm i think something is wrong... i made 125kw with the stock tune, and then 175kw after a retune + hks filter.
then went 3in tbe into stock muffs, inlet, few other bits and bobs & did 184kw... Stock muffs holding me back and also it was 33degree ambient temp.
i'd double check all your vac lines and maybe log it and see if you can find anything, because even though mine is manual it still should be pretty up there near what matt said around 185...


Hmm, I've logged it and will give it to someone to have a look at, see what's going on. I know that another forum member Satogixxer (Michael) did 149.5 kw on his gen V manual completely stock , could it be that I need a 3port boost controller? , maybe issue with holding boost or something ?
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby jarrenowen » Sat Jan 07, 2017 1:21 pm

Niz22 wrote:
jarrenowen wrote:hmm i think something is wrong... i made 125kw with the stock tune, and then 175kw after a retune + hks filter.
then went 3in tbe into stock muffs, inlet, few other bits and bobs & did 184kw... Stock muffs holding me back and also it was 33degree ambient temp.
i'd double check all your vac lines and maybe log it and see if you can find anything, because even though mine is manual it still should be pretty up there near what matt said around 185...


Hmm, I've logged it and will give it to someone to have a look at, see what's going on. I know that another forum member Satogixxer (Michael) did 149.5 kw on his gen V manual completely stock , could it be that I need a 3port boost controller? , maybe issue with holding boost or something ?


i wouldn't say a 3port would make it any better, it just controls it better. also 19psi is a fair bit, i'm running 18.5psi for 184kw... do afew logs, reset ecu and check your vac hoses would be my suggestion.
jarrenowen

Posts: 226
Joined: Tue Jun 09, 2015 12:48 pm
Location: Newcastle
Car: 2007 Liberty Gt Spec.B
Real name: Jarren
Profile URL: viewtopic.php?f=10&t=31061

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby Libacy Gt » Sat Jan 07, 2017 1:45 pm

jarrenowen wrote:i wouldn't say a 3port would make it any better, it just controls it better. also 19psi is a fair bit, i'm running 18.5psi for 184kw... do afew logs, reset ecu and check your vac hoses would be my suggestion.



I do know that the boost is playing up on top end , and is very flat, its not holding up well throughout the rev range, only gear one has some punch . Sometimes it reaches 21.6psi, According to the Btssm . Can i reset ECU via the btssm app i have? also will it ruin the tune? not sure how that works. And where are the vacuum hoses? wouldn't a leak have been obvious during dyno or tune?
Libacy Gt

Posts: 190
Joined: Sun Oct 16, 2016 3:13 pm
Car: Lib Gt Wagon Gen 5, 5EAT 2011
Profile URL: viewtopic.php?f=10&t=34162

Re: Member Profile-Niz22 Gen V Gt Wagon

Postby jarrenowen » Sat Jan 07, 2017 10:49 pm

if your boost isn't holding pressure, a 3port and possibly a bov may help, especially if it's spiking like it seems to...
Vacuum hoses there are multiple, one under the intercooler on the manifold is a common one to pop off...
jarrenowen

Posts: 226
Joined: Tue Jun 09, 2015 12:48 pm
Location: Newcastle
Car: 2007 Liberty Gt Spec.B
Real name: Jarren
Profile URL: viewtopic.php?f=10&t=31061
