Postby cynner » Thu Sep 05, 2013 11:51 pm

Thought I'd post up a brief "profile"... have recently sold my old Gen 1 Legacy which had quite a few "go fast bits" on it... and have replaced it with a MY08 GT wagon (6 speed manual).

I had planned on keeping it fairly stock, but so much for that plan :roll: - current mods:

Engine (custom built engine - car odometer at 182,000kms)
MY06 WRX EJ255 Engine (Rebuilt Heads)
Cylinders Honed to 100mm
Mahle Power Pak Plus Forged Pistons
Manley Rods
ARP2000 Head Studs
Cosworth Oil Pump
KillerB Sump, Oil Pickup and Baffle
Arp Case Bolts
Process West billet TGVs
Grimmspeed phenolic manifold spacers
Cometic Head Gasket (part # C4264 040)
OEM Timing Belt Kit
OEM Water Pump (cast version part # 21111AA026)
Mishimoto X-Line 3 Row Radiator
Beatrush Alloy Under Engine panel

Performance
ATP STi SILVER Turbo (billet wheel, ceramic coated ball bearing - comparable to GTX3071)
Kobe Motorsports silicon intake pipe
Process West Top Mount Intercooler kit
Process West cold air intake kit with K&N pod filter
Invidia Aus-spec Dump Pipe with hi-flow cat
TCP Quad Tip mufflers and TCP 3" Mid/Y pipe
Pro Speed Racing EL headers and up-pipe, Ceramic Coated
Teknofibra Heat Shielding (sump, air intake, fuel lines)
Pierburg 3-port boost solenoid with custom-made stainless steel bracket
Saikou Michi Custom S3-DC3 Dual Catch Can setup
DeatschWerks DW65C Fuel Pump
Injector Dynamics ID1050X Fuel Injectors
Turbosmart FPR1200 Fuel Pressure Regulator
Radium Engineering FPD-XR Pulse Dampner
Radium Engineering Fuel Rails
Parallel rail setup with Raceworks Teflon Braided Fuel Lines & Fittings
Plazmaman Vacuum Distribution Block
NGK Platinum Spark Plugs

Brakes
Brembo 4-pot fronts and 2-pot rears (from JDM 2002 GDA WRX STi) - custom metallic gold
Dog bone adaptor (by Cruisin') for rear Brembo's
Custom 190mm handbrake shoes for rear Brembo's
Dixcel SD slotted rotors front
Dixcel M rear brake pads
Circo M119 front brake pads
Project-Mu front shims
BF Goodrich Braided Brake Lines
Cusco Brake Cylinder Stopper

Handling/Suspension
Tein Flex coilovers (JDM 24-way adjustable, 6kg front/rear springs)
Whiteline KTA124 - rear control arm adjustment kit (camber correction for coilovers)
Whiteline KCA399 control arm rear bushing (fitted before KTA124 – not really needed now)
Whiteline BSR39 20mm Rear Swaybar
AVO Rear Swaybar Mount Reinforcement Bracket
Whiteline/Selby BSF30Z 22mm Front Swaybar
"Tuned by STi" genuine front strut brace

Drivetrain/Steering
Mantic Stage 2 Clutch
WRX STi RA Spec C Flywheel
2-way plated rear diff (WRX STi RA Spec C)
2.7-turn quick steering rack (WRX STi Spec C)
Nolathane front control arm bushes
Nolathane rear diff cradle bush
Perrin Alloy Pitch Stop
STi Group N Tranmission Mount

Bling
"Tuned by STi" genuine Enkei 18x7.5" Rims
"Tuned by STi" genuine gear knob
"Tuned by STi" genuine rear badge
"Tuned by STi" front lip (eBay copy)
Genuine honeycomb sports mesh grille
STi Alternator Cover (instead of stock engine cover)
Tinted windows (match factory wagon rear security tint)
Slimline weather shields
Colour coded mud flaps
JDM stainless steel rear bumper protector

Electrical
Optimum Red Top 800cca battery
BtSsm ODB2 Dongle/App
Samsung Tab 2 7" tablet installed in dash (satnav pocket location)
Knocklink G4 knock sensor light
LED white park lights to match factory HID's (from HKS180)
LED HB4 36w C9 dual colour (white/yellow) driving lights (from HKS180)
LED interior lights and number plate lights (from hks180)
Innovate ECF-1 Wideband, Fuel Pressure, Fuel Temp and Ethanol % Gauge
Blackvue DR650GW 2 channel dash cam + Power Magic Pro

Audio
Sony XAV-AX100 Double-Din Head Unit
Pioneer RCAMAVIC Reverse Camera
JVC KS-DR3005D 1000w 5ch Amp
Polk 8" sub replacement
Double-Din Facia Replacement & OEM Cable Kit
Attachments
Last edited by cynner on Sun Dec 17, 2017 6:35 pm, edited 67 times in total.
User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586

Re: Member Profile - cynner

Postby paggaz » Fri Sep 06, 2013 12:22 am

Nice example you have there. It's hard to come by manual wagon GTs!

You've worked quickly with the mods too, Kim!
User avatar
paggaz

Posts: 1237
Joined: Wed May 30, 2012 5:56 pm
Location: Townsville, QLD
Car: 2007 GT Spec.B Wagon Silver
Real name: Nathan
Profile URL: viewtopic.php?f=10&t=17423#p241526

Re: Member Profile - cynner

Postby jslayz » Fri Sep 06, 2013 1:26 am

Looking Good!
CURRENT - ATP GTX 3576 - 22psi - 283.7awkw
OLD - Dom 1.5Xtr - Last dyno 254ahkw, previous 238ahkw, first 224awkw.
My journey thread: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523
My Lib Pics here: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523&start=570#p370656
User avatar
jslayz

Posts: 2810
Joined: Tue Mar 09, 2010 11:32 pm
Location: Perthhhhhh
Car: 2005 Liberty GT Wagon
Real name: J

Re: Member Profile - cynner

Postby HoFF » Fri Sep 06, 2013 7:39 am

Looks like you found a winner there Kim.
User avatar
HoFF
-stickered-

Posts: 1447
Joined: Sun Sep 05, 2010 11:39 am
Location: Southern Highlands NSW
Car: MY06 3RB Liberty Wagon 6MT MY09 Foz
Real name: Tom
Profile URL: viewtopic.php?f=10&t=13577&start=255

Re: Member Profile - cynner

Postby cynner » Wed Oct 16, 2013 5:16 pm

I knew I should have got an H6... these GT's are just way too easy to modify!

Currently with the post-man:

TCP Auto full turbo back system
Pierburg 3-port boost solenoid
Process West in-guard POD filter/cold air intake kit
User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586

Re: Member Profile - cynner

Postby peadya100 » Wed Oct 16, 2013 7:09 pm

Beautiful car!
Youll love the performance youll have after your exhaust and re-tune!!
Diamond Works SI-DRIVE Covers - Subaru Liberty/Legacy MY07 to MY09

https://www.facebook...aruDiamondWorks
subaru.diamondworks@gmail.com
User avatar
peadya100
-stickered-

Posts: 2242
Joined: Wed Dec 08, 2010 1:21 pm
Location: Norah Head, Central Coast
Car: 2007 Liberty GT-B Wagon
Real name: Adam
Profile URL: viewtopic.php?f=10&t=21072

Re: Member Profile - cynner

Postby Robbks » Thu Oct 17, 2013 7:43 am

"I'm just going to keep it pretty much stock, they go so well as they are, I'm tired of lots of modifying...."

BAHAHAHAHAHAHAHAHAHAHA...

Top bus, and a credit to your approach to modding.!
coyote wrote:Sure, a GTR is fast ... but it's about as interesting as listening to grass grow.
User avatar
Robbks

Posts: 2185
Joined: Wed Jan 05, 2011 8:21 am
Location: Hobart, Tas
Car: MY06 3.0RB Wagon
Real name: Rob
Profile URL: viewtopic.php?f=10&t=12350

Re: Member Profile - cynner

Postby cynner » Tue Nov 05, 2013 9:19 am

Hah yes, I did say I'd keep it stock didn't I? :wink:

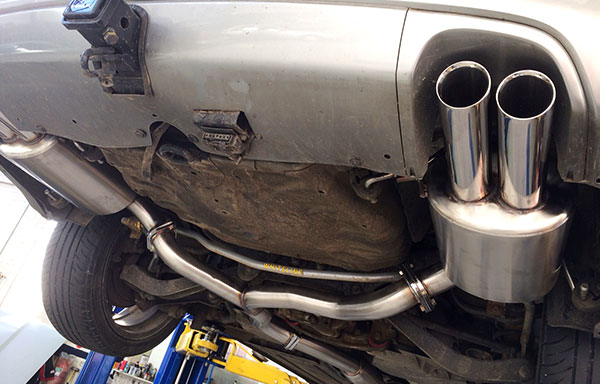

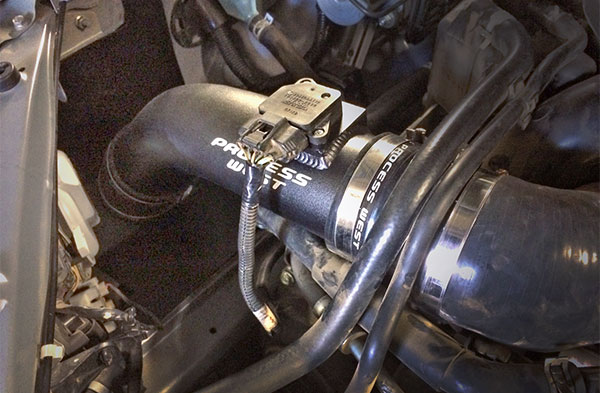

So on the topic of keeping it stock, here are yesterdays updates :) TCP turbo-back exhaust, and a Process-West in-guard intake.

The exhaust sounds really nice (not too loud at all). The intake is a bit too loud for my liking, but I'll get used to it no doubt...
Attachments
User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586

Re: Member Profile - cynner

Postby cynner » Tue Jan 21, 2014 8:57 am

New clutch went in last week. Came from an STi RA Spec C – only had about 50km's on it (factory floor to race car workshop). Also had an STi flywheel fitted - can't tell the difference between it and the stock Liberty GT flywheel (although it is a little lighter - maybe 12kg to 8kg or something like that?).

Have a 2-way rear plated diff to go in on Thursday (also from STi RA Spec C).

Coilovers are at a good height now - about a 25mm gap between tyre and guard all round. Doesn't seem to scrape on things...

User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586

Re: Member Profile - cynner

Postby cynner » Thu May 29, 2014 7:01 pm

New photo :)

User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586

Re: Member Profile - cynner

Postby gtbsti » Thu May 29, 2014 7:46 pm

Beautiful Kim! I love the ride height.
User avatar
gtbsti

Posts: 133
Joined: Thu Oct 04, 2012 7:21 pm
Location: Victoria
Car: MY08 GT Spec.B Tuned By STi Wagon
Profile URL: JDM Wagonist

Re: Member Profile - cynner

Postby alessandro132 » Fri May 30, 2014 8:32 am

Looks great :)
TEAM TOYOTA | TEAM HKS

Cusco, HPI, HKS, and a few other bits...
User avatar
alessandro132
-stickered-

Posts: 2380
Joined: Wed Mar 21, 2012 8:40 am
Location: Sydney
Car: 2000 JZX100 Toyota Chaser Tourer V
Real name: Al
Profile URL: viewtopic.php?f=10&t=16914

Re: Member Profile - cynner

Postby cynner » Fri May 30, 2014 9:32 am

alessandro132 wrote:Looks great :)


Will look even better with your Brembos soon :D
User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586

Re: Member Profile - cynner

Postby shav » Fri May 30, 2014 11:05 am

sensational car mate. Top work on the mods.
Cheers
Shav

MY07 Subaru Liberty GT Premium Sedan | HKS Panel filter | Pierburg 3 port | Whiteline adj sways F&R | Cusco HD mounts | Whiteline HD front sway links | Anycarlink AL-1080B | Ultrex s/s 3" CBE | Ultrex PU lip spoiler | Invidia s/s dump pipe and 100cel cat | KiDo tuned | DBA T2 rotors | Intima SS brake pads | Mishimoto TMIC | Koya ISR7 wheels | 265L Kobe fuel pump | Diamond Works SI Drive dial | Bilsteins

COSMETIC MODS ON THE WAY

My other toys:
2012 Focus Cayo 2.0 road bike
2015 Cervelo S5 VWD road bike
User avatar
shav

Posts: 3606
Joined: Tue Jun 26, 2012 12:01 pm
Location: Adelaide, Southern Suburbs
Car: MY07 Subaru Liberty GT Premium
Real name: Shav
Profile URL: viewtopic.php?f=10&t=18915&start=480

Re: Member Profile - cynner

Postby cynner » Sat Jun 28, 2014 7:26 pm

Put it on the dyno today. Fairly comfortable figure I think - 178.3kw/atw, 581.1nm at 92kph. Safe boost (approx. 15psi at peak power - 18psi at less airflow).

Will have a PW top mount fitted soon and will run a new tune - will be interesting to see if theres much difference...

User avatar
cynner

Posts: 462
Joined: Fri Jul 05, 2013 4:38 pm
Location: Hobart, Tasmania
Car: MY08 GT Wagon
Real name: Kim
Profile URL: viewtopic.php?f=10&t=23586
