Postby Alkem1st » Fri Jan 04, 2013 8:06 pm

Bout time I updated the profile.

Sold the old 2004 silver lib and now have a black 2006 6MT spec b GT :).

First mod, zerosport grill :)



----- OLD CAR -----
Had the car since about June 2012 and haven't done a whole lot so far but hoping to get some mild mods done over this year.

It was a bit of an odd car in that it had some interesting mods.

It had the 3 litre front bumper with lip and a facelift model grill. Also came with sat nav, reverse camera and reverse sensors which I thought were factory extras until I started my stereo install recently (that's a saga in itself). haha. Has WRX brakes which I'm not that keen on given that the front discs are smaller than standard GT brakes (the 4-pots are good but with smaller discs, fade will set in earlier..) so going to swap them over soon. Also had some billies so handling is pretty decent. Here's how I bought her (well, the bonnet was closed)...
2012-08-11 09.53.27 small.jpg
Early days
2012-08-11 09.53.27 small.jpg (134.23 KiB) Viewed 2446 times


Had a few things that needed attention before I could spend cash on better bits (wheel bearing, powersteering pump, cv boot, radiator hoses, worn tyres). Also got a knocking on acceleration from the right front which after reading some threads just now seems in could be a strut top bolt (about to check it out).

First thing I tackled were the aesthetics as I wanted the GT front, grill and lip. Grabbed a cheapish front bumper from a forum member that had been cut out for a front mount and had a few scratches here n there (it will do for now, I'll either respray it or source another that's in better nick). Grabbed the genuine sports grill from ebay (thanks great buys thread!) and had the guys at Dalcos respray it. Also grabbed a replica front lip from the US (2nd attempt as they sent a facelift spec B one initially. ARGH!). I needed new tyres so sourced a set of WRX rims with good tread and sold my GT rims to save cash :)

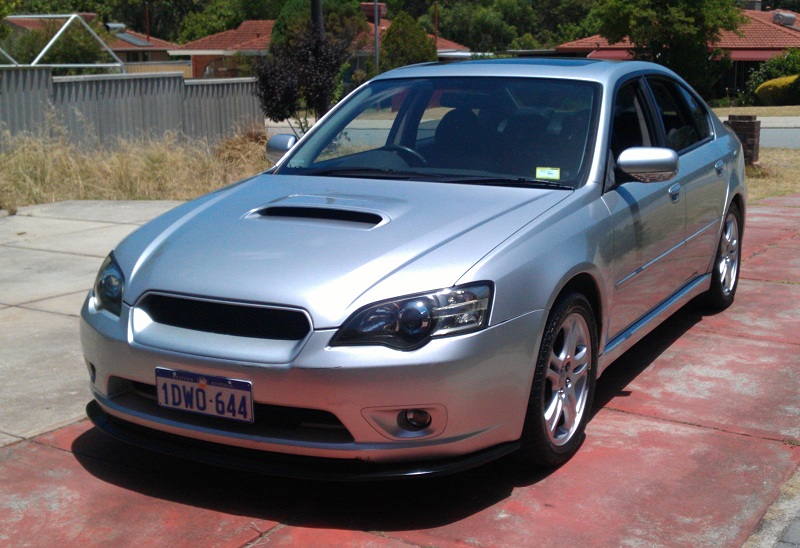

Gave her a wash today so this is the current look.
2013-01-04 12.20.26 small.jpg
2013-01-04 12.20.26 small.jpg (167.35 KiB) Viewed 2446 times


2013-01-04 12.20.56 small.jpg
2013-01-04 12.20.56 small.jpg (180.46 KiB) Viewed 2446 times


Spent a bit on the fascia kit and head unit recently (pics/details to follow) so I'm broke at the mo. The next thing I'm going to concentrate on is the handling side. Hoping to grab some coil-overs, swaybars, bushes, links, etc. and then maybe the exhaust (love the set-up stomps has at the mo, think they're prova mufflers). Also really keen on the kido tune, both ecu and auto transmission (which annoys me a bit).
Last edited by Alkem1st on Sat Aug 08, 2015 2:00 pm, edited 3 times in total.
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby Bond » Fri Jan 04, 2013 8:13 pm

Nice tidy car mate! She should go well with those mods you listed. Enjoy!
User avatar
Bond

Posts: 124
Joined: Sat Dec 15, 2012 7:56 pm
Location: Brisbane, QLD
Car: MY05 Liberty Wagon
Real name: Aaron

Re: Member Profile - Alkem1st's MY04 GT

Postby zch91 » Fri Jan 04, 2013 8:16 pm

Bloody hell, talk about mix n match! Maybe it had a front end collision at some point - which would explain the weird front end?
4pot brakes.. now that's different.

Nice car though mate, has come along nicely! Looking forward to future mods/updates.
User avatar
zch91
-stickered-

Posts: 2651
Joined: Sat Dec 24, 2011 11:12 am
Location: Darwin, NT
Car: MY04 GT Premium - Silver 5EAT
Real name: Zach
Profile URL: viewtopic.php?f=10&t=15397

Re: Member Profile - Alkem1st's MY04 GT

Postby Alkem1st » Fri Jan 04, 2013 10:11 pm

Cheers guys.

Yeah it is a bit of a bastard and might be the result of a front end as you say. Everything else looks fine under there which is good and the rest I'm sorting out as I go.

Can't wait to start on the more exciting mods :D
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby jslayz » Fri Jan 04, 2013 11:21 pm

Looking good Allan.

Hope to see you and your car at a cruise/meet soon.

J
CURRENT - ATP GTX 3576 - 22psi - 283.7awkw
OLD - Dom 1.5Xtr - Last dyno 254ahkw, previous 238ahkw, first 224awkw.
My journey thread: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523
My Lib Pics here: http://forum.liberty.asn.au/viewtopic.php?f=10&t=15523&start=570#p370656
User avatar
jslayz

Posts: 2779
Joined: Tue Mar 09, 2010 11:32 pm
Location: Perthhhhhh
Car: 2005 Liberty GT Wagon
Real name: J

Re: Member Profile - Alkem1st's MY04 GT

Postby Corsair » Sat Jan 05, 2013 12:05 am

Looking good. New grille is much better and wheels and lip are choice. IMO, the original front bar was pretty cool though. I would've kept it.
I got this plan. It's called 'Save Ass'. And the way it works is this - I slip outta one of these windows and I run like a bastard!
User avatar
Corsair
-stickered-

Posts: 953
Joined: Sun Sep 18, 2011 12:01 am
Location: Melbourne
Car: MY09 Liberty 2.5i
Profile URL: viewtopic.php?f=10&t=15709

Re: Member Profile - Alkem1st's MY04 GT

Postby Alkem1st » Sat Jan 05, 2013 2:21 am

Thx J and Corsair,

Hopefully I can get down to the next one.

I don't mind the 3.0 bumper really, seen some nice examples with it but I really like the GT bumper.
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby Alkem1st » Sat Jan 05, 2013 3:24 am

So as I mentioned, I spent a bit of time replacing the macintoss system after too many burned CDs it didn't like. Also ended up spending most of the time cleaning up existing wiring.

This is what was installed when I bought it. Garmin SatNav on the screen with a reverse camera, front and reverse sensors and a nokia bluetooth system (controller out of view near the handbrake).
2012-05-22 09.55.09 small.jpg
2012-05-22 09.55.09 small.jpg (178.2 KiB) Viewed 2404 times


It worked well and I assumed it was factory fitted until I looked closer and popped the panels off. What was beneath was a mess of wiring, soldering, relays, rca cables and insulation tape.
2012-12-16 16.41.49 small.jpg
2012-12-16 16.41.49 small.jpg (205.17 KiB) Viewed 2404 times


I found the module for the front parking sensors that I didn't need given the swapped bumper and the led thing on the dash didn't work anyways. Took out the Nokia bluetooth kit because the new head unit had it inbuilt. Removed the relay for the reverse camera and used the new unit again as it did the switching with just the reverse wire so the top screen only handles the sat nav now. Also took out some horrible attempt at connecting an ipod via an FM transmitter for audio and AV cables into the top screen plus a switch to change it over from sat nav. All hard wired instead of through the cigarette lighter.
2012-12-16 20.31.34 small.jpg
2012-12-16 20.31.34 small.jpg (157.78 KiB) Viewed 2404 times


Oh look, I found an Apexi turbo timer by chance in the dash near the fuses hooked up to the same button that turned on the front sensors and although it did a count down, it had no effect on keeping the engine running... wtf!!! LOL
2012-12-16 20.36.15 small.jpg
2012-12-16 20.36.15 small.jpg (145.78 KiB) Viewed 2404 times


Interesting bit of soldering going on here... unfortunately a lot was like this. Usually covered badly with insulation tape and spliced into many a factory connector, even sharing the ground wires..
2012-12-20 18.17.09 small.jpg
2012-12-20 18.17.09 small.jpg (149.17 KiB) Viewed 2404 times

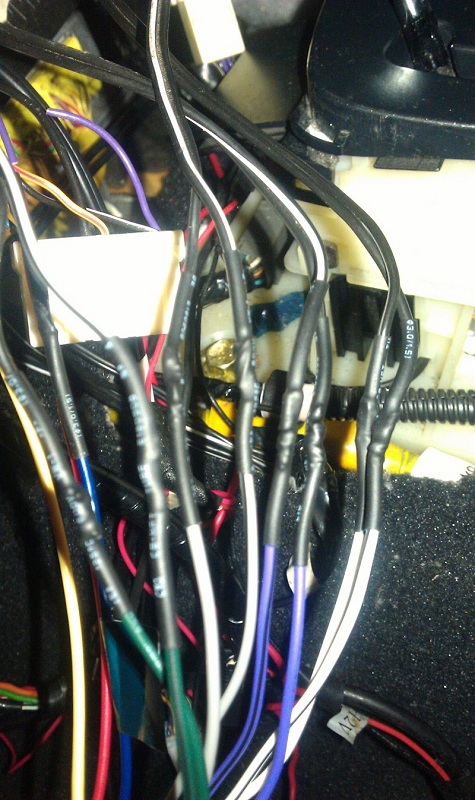

Started cleaning things up and wired in the new headunit connector (rear speakers will run off the deck when needed).
2012-12-20 23.03.19 small.jpg
2012-12-20 23.03.19 small.jpg (163.96 KiB) Viewed 2404 times

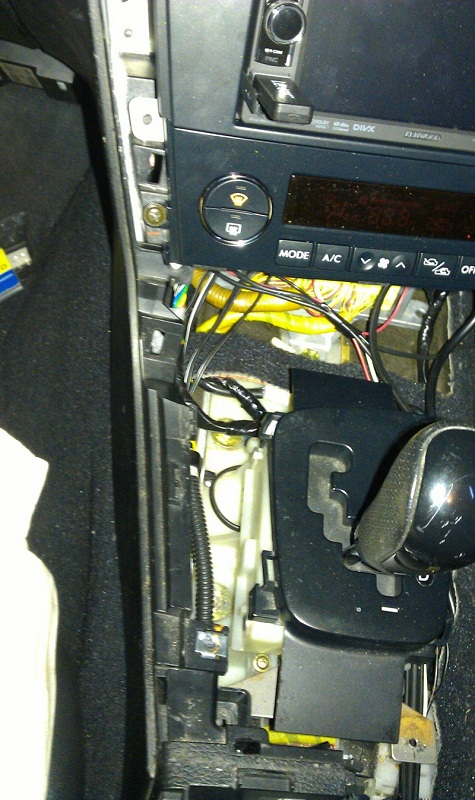

Centre console area is now much tidier.
2012-12-26 23.31.14 small.jpg
2012-12-26 23.31.14 small.jpg (168.06 KiB) Viewed 2404 times

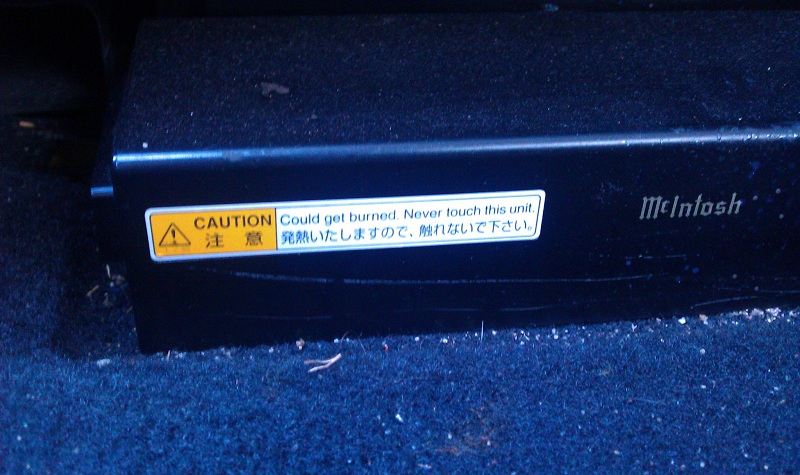

I took the chance... luckily I didn't get burnt. An alpine amp now resides here waiting to power a 12".
2012-12-19 18.16.32 small.jpg
2012-12-19 18.16.32 small.jpg (150.94 KiB) Viewed 2404 times

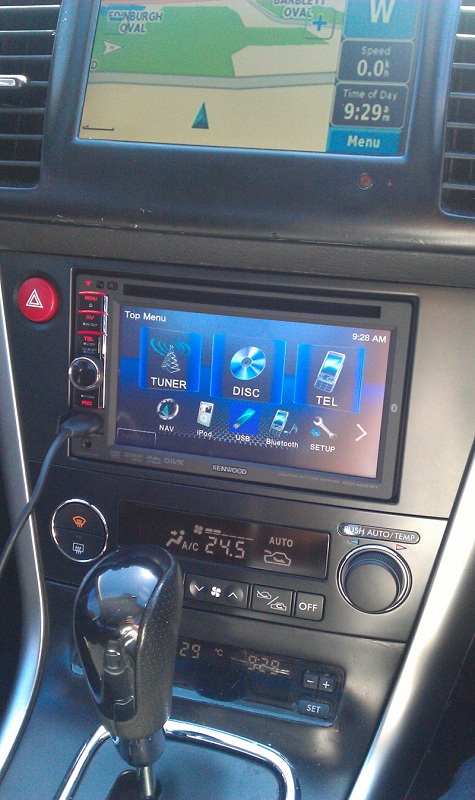

The end result. New head unit in the double din fascia kit and well-wired sat nav, cam, rev sensors, etc.
2012-12-21 09.28.28 small.jpg
2012-12-21 09.28.28 small.jpg (155.21 KiB) Viewed 2404 times
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby Alkem1st » Sat Jan 05, 2013 3:31 am

Ran out of attachments so the rear amp install is in this post...

I decided to mount the other amp, that will power my MB Quart splits at the front and 8 inch in the parcel, behind the rear seats. The only problem was that the stock location only has flimsy card-plastic so I used that as a template to cut out a piece of aluminium to mount it. Works well and the stock holes are enough to mount it securely with a few bolts. Little bit of dynamat on the rear to prevent rattles. All that's left is to find some matching carpet.
2012-12-25 17.19.08 small.jpg
2012-12-25 17.19.08 small.jpg (129.03 KiB) Viewed 2404 times

2012-12-25 18.09.13 small.jpg
2012-12-25 18.09.13 small.jpg (119.78 KiB) Viewed 2404 times

2012-12-25 18.33.26 small.jpg
2012-12-25 18.33.26 small.jpg (127.54 KiB) Viewed 2404 times

2012-12-29 00.17.27 small.jpg
2012-12-29 00.17.27 small.jpg (234.09 KiB) Viewed 2404 times

2012-12-29 00.17.40 small.jpg
2012-12-29 00.17.40 small.jpg (194.79 KiB) Viewed 2404 times


Was pretty easy to do in the end. Just need a jigsaw, drill press and dremel. Stock trim went back in easily.

Now I just need to put the splits in, the 12" and get a decent 8" into the parcel shelf. I'll see how it sounds as this may be enough and perhaps I can go without the 12"...
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby agan » Sat Jan 05, 2013 3:40 am

Nice work Allan!

Liking the gt bumper - something about the preface gt bumpers :)
MY08 GT Spec.B Diamond Grey Sedan
User avatar
agan

Posts: 1085
Joined: Fri Apr 09, 2010 11:32 pm
Location: Perth, WA
Car: MY08 GT Spec.B Sedan
Real name: patrick
Profile URL: viewtopic.php?f=10&t=18369

Re: Member Profile - Alkem1st's MY04 GT

Postby garbo41610 » Sat Jan 05, 2013 8:07 am

Looks like typical backyard abortion wiring on that head unit. Don't know how many head units wiring I've tidied up over the years. You've done a great job fixing it up.

Just reading your post and I'm a little confused, are you going to run a 12" sub as well as an 8" in the parcel shelf??? Not a good idea, but I may have read it wrong.
Car(s): Steel Silver MY10 GT Wagon + 1985 Subaru Sherpa

Mods: (GT) HKS Panel Filter. The HKS I put in the MY10 is the same filter I took out of my MY05 GT. So yes, they do fit. Custom leather heel pad to minimise carpet wear in the drivers footwell. Slotted front rotors. (Sherpa) 14'' 6 Spoke mags, Chrome Gear Shift (sick!), Alloy Pedals (sicker!), new positive and negative battery terminals, Alpine cda-9827 H/U, JBL GT 6x9's boxed and mounted (sickest!), Kicker DS650.2 component speakers mounted in the footwells in flibreglass pods, Alpine MRP-F200 4 channel amp (4x40wRMS), Rebadged with hektik chrome eBay badges, STi stickers for more powaaaa, "leather" handbrake boot, recarpetted with grey/black car carpet from Bunnings, sick Clarke Rubber boot mat, polished and waxed.
User avatar
garbo41610
-stickered-

Posts: 1786
Joined: Thu Jun 11, 2009 11:28 am
Location: Emu Heights and Randwick depending on time of day
Car: MY10 GT Wagon Steel Silver
Real name: Phil

Re: Member Profile - Alkem1st's MY04 GT

Postby Boostaddict » Sat Jan 05, 2013 8:42 am

Lol.... The difference between what you found under the gearbox panel to after you had finished was amazing....great work there mate. I wish i had the patients and time to do a stereo instal.
Not a Subaru...... Something MUCH better

NOPE..... That's shit too. Bus anyone??
User avatar
Boostaddict

Posts: 2985
Joined: Sun May 13, 2012 10:52 am
Location: Sydney
Car: 07 LGT Tuned By Sti
Real name: Daniel
Profile URL: viewtopic.php?f=10&t=22537

Re: Member Profile - Alkem1st's MY04 GT

Postby Alkem1st » Sat Jan 05, 2013 12:54 pm

garbo41610 wrote:Looks like typical backyard abortion wiring on that head unit. Don't know how many head units wiring I've tidied up over the years. You've done a great job fixing it up.

Just reading your post and I'm a little confused, are you going to run a 12" sub as well as an 8" in the parcel shelf??? Not a good idea, but I may have read it wrong.


Yep, seen a few but nothing of this level before. haha.

I'm still not sure what to do about the subs. Currently just using the stock crappy 8 inch till I figure it out. I usually run a 12" with splits at the front but I've seen some guys running a better 8 inch in their liberties. I'm just not sure if it would be enough although I know what you mean about having a sealed 12" in the same space that a free air 8inch is using... what do you reckon would work better? My tastes are pretty varied (drum and bass, dubstep, hip hop, rnb, jazz). Prefer a nice clean sound with tight bass but still able to hit some of the deeper/lower frequencies. Certainly not after big SPL. LOL...
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby Alkem1st » Sat Jan 05, 2013 12:58 pm

Thx Patrick and Daniel.

Does take a bit of patience and time but I wouldn't be able to sleep right anymore after seeing that mess in there, haha. Can't wait till I can finish up the install.
User avatar
Alkem1st

Posts: 398
Joined: Tue Oct 25, 2011 10:58 pm
Location: Perth, WA
Car: MY07 Liberty GT SpecB
Real name: Allan
Profile URL: viewtopic.php?f=10&t=20099

Re: Member Profile - Alkem1st's MY04 GT

Postby garbo41610 » Sat Jan 05, 2013 6:22 pm

Alkem1st wrote:
garbo41610 wrote:Looks like typical backyard abortion wiring on that head unit. Don't know how many head units wiring I've tidied up over the years. You've done a great job fixing it up.

Just reading your post and I'm a little confused, are you going to run a 12" sub as well as an 8" in the parcel shelf??? Not a good idea, but I may have read it wrong.


Yep, seen a few but nothing of this level before. haha.

I'm still not sure what to do about the subs. Currently just using the stock crappy 8 inch till I figure it out. I usually run a 12" with splits at the front but I've seen some guys running a better 8 inch in their liberties. I'm just not sure if it would be enough although I know what you mean about having a sealed 12" in the same space that a free air 8inch is using... what do you reckon would work better? My tastes are pretty varied (drum and bass, dubstep, hip hop, rnb, jazz). Prefer a nice clean sound with tight bass but still able to hit some of the deeper/lower frequencies. Certainly not after big SPL. LOL...



Single 12 in a sealed enclosure would more than suffice fed from a decent amp. Go ported if you want it to hit nice an low, personally i prefer the sound of a sealed enclosure though. Having them both running would rattle the bejesus out of the poor little 8" sub not to mention the frequencies getting all mish mashed.
