DIY - Intercooler Water Sprayer

Postby jacks-GTB » Sun Sep 11, 2011 4:57 pm

Hey dudes,

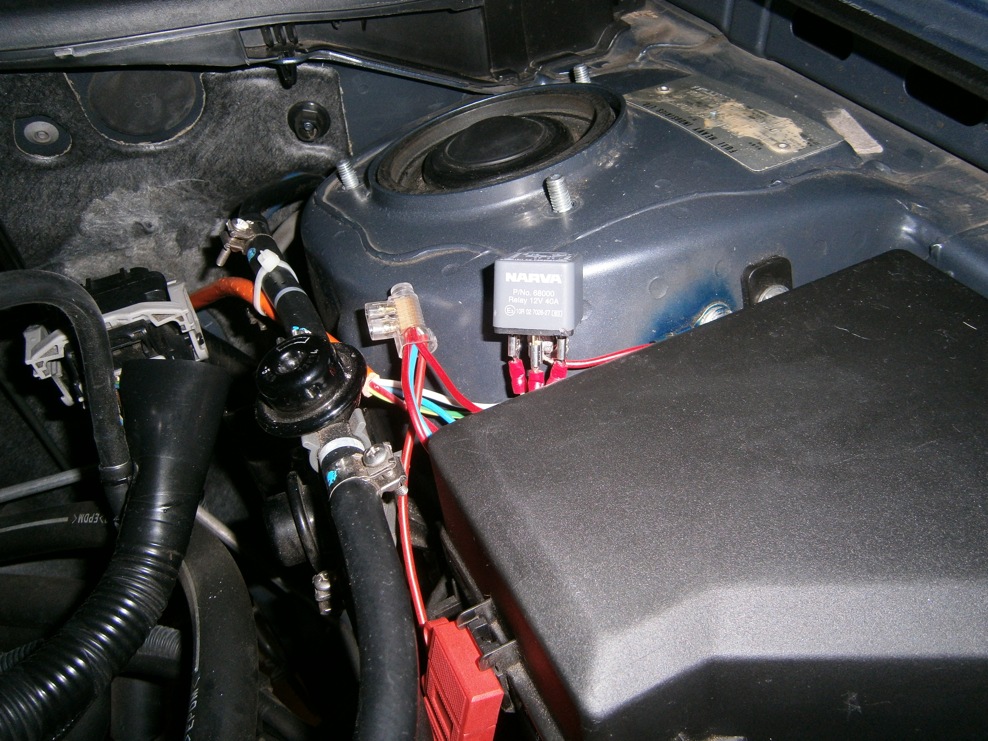

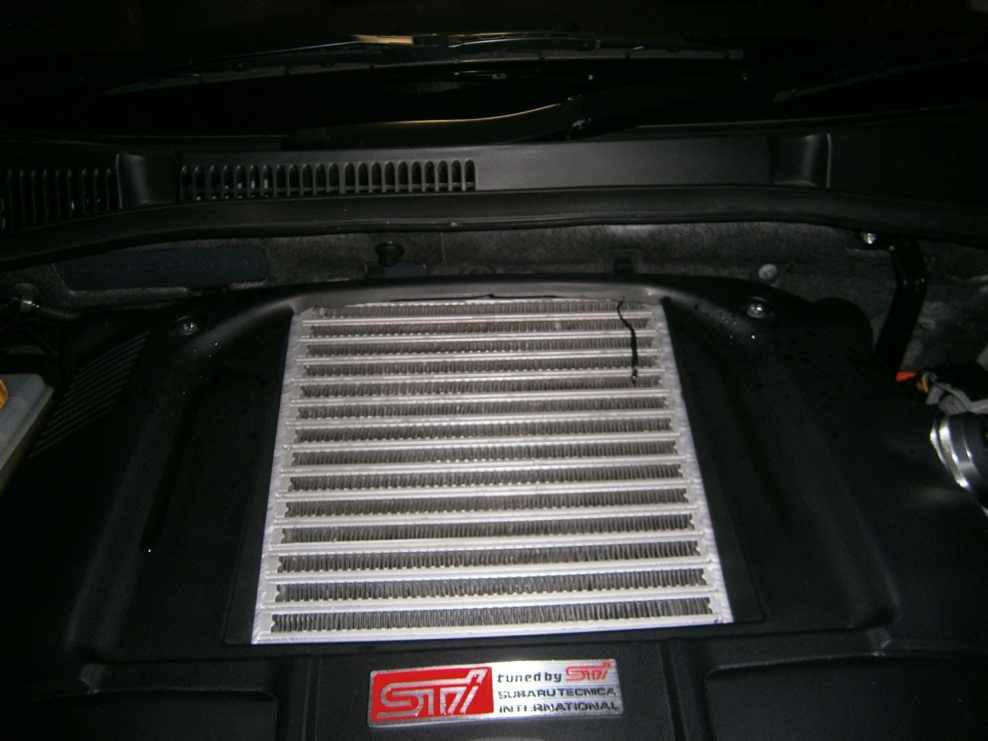

I finished my DIY water intercooler sprayer on my 07 Liberty. It took a little mucking around but i did it... I also put a thermostat on the intercooler itself, to a Digital display of the temp, so i can the difference after the sprayer. And that sits in the glovebox.

I got some pics for you

Attachments
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629

Re: DIY - Intercooler Water Sprayer

Postby cruisn » Sun Sep 11, 2011 6:06 pm

Nice one.

Need to tape or spiral wrap your cables though for neatness. ;)
User avatar
cruisn

Posts: 6560
Joined: Tue Nov 03, 2009 8:09 pm
Location: Melbourne
Car: MY02 GTB E Tune
Real name: Mark

Re: DIY - Intercooler Water Sprayer

Postby hamish_023 » Sun Sep 11, 2011 6:19 pm

Awesome, have you got the readings of the temps?
User avatar
hamish_023

Posts: 3608
Joined: Mon Aug 10, 2009 8:21 pm
Location: Adelaide
Car: Black Liberty GT
Profile URL: viewtopic.php?f=10&t=10013

Re: DIY - Intercooler Water Sprayer

Postby teK-- » Sun Sep 11, 2011 6:43 pm

Those water droplets are huge! What nozzles did you use; I'm pretty sure other kits i've seen it is a very very fine mist to allow for quick evaporation.

Also it may be more accurate for you to measure IAT via the ECU rather than stick a probe inbetween the cooling fins.
MY04 2.5i Safety 5MT Sedan "Project Locomotive"
..: JDM Subaru-AVO-Whiteline-Bilstein-Swift Springs-Cusco-Rallitek-GT Brakes-Remsa-K4RT30Y-Blitz-Philips-Défi-STI-Sabelt-Redline-Alpine-Polk Audio-Kenwood-Dynamat :..
User avatar
teK--
-stickered-

Posts: 4060
Joined: Thu Jun 11, 2009 5:02 pm
Location: Melbourne

Re: DIY - Intercooler Water Sprayer

Postby jacks-GTB » Sun Sep 11, 2011 7:42 pm

thanks guys.... Yeh i'm gonna do a tiding up, but i just wait to put it up on the forum...
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629

Re: DIY - Intercooler Water Sprayer

Postby jacks-GTB » Sun Sep 11, 2011 7:44 pm

hamish_023 wrote:Awesome, have you got the readings of the temps?



Yeah i took it for a drive before but it was getting late, but outside temps were about 17 and after the spray (at about 80km) it went as low as 14.5..
so it's doing its job..

i'm pretty stoked about it...
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629

Re: DIY - Intercooler Water Sprayer

Postby jacks-GTB » Sun Sep 11, 2011 7:47 pm

teK-- wrote:Those water droplets are huge! What nozzles did you use; I'm pretty sure other kits i've seen it is a very very fine mist to allow for quick evaporation.

Also it may be more accurate for you to measure IAT via the ECU rather than stick a probe inbetween the cooling fins.



They look huge because the bonet is up... :lol: but when it is down, it sprays fine.. i did some tweaking to get it right on the intercooler...I also pulled over, and the water had all ready evaporated...

Yeh i'll look into something like with the temp readings...
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629

Re: DIY - Intercooler Water Sprayer

Postby t.renshaw34 » Sun Sep 11, 2011 9:43 pm

very very nice :D, bet that would have taken a while to get right.

what are your gains like from it? wouldnt be more than 5-10 kw would it? maybe more on a hotter day.

I havent read alot into these so dont hate if im way off. lol
Project Lib - HKS-Killer B-STI-Ultrex-Stanza-Innovate-Perrin-Dynamat-DAMD-K2 Gear-BC-Kartboy-Whiteline-Cusco-Brembo-ROTA-Pirelli-Goodridge-Project MU-DBA-EBC-Garage 88-AVO-Redline-Carbign Craft-Walbro-ID-Kstech-Turbosmart-X Force-Rallitek
User avatar
t.renshaw34

Posts: 1630
Joined: Sat Aug 13, 2011 12:14 pm
Location: Adelaide, SA
Car: 2005 Black Lib GT
Real name: Taylor
Profile URL: viewtopic.php?f=10&t=13404

Re: DIY - Intercooler Water Sprayer

Postby Ben » Mon Sep 12, 2011 12:25 pm

Nice one!

If you are using too much water, try the Subaru Genuine Intercooler Water Spray Nozzles for a finer mist.
Part Number: 86636FA120
$27ish from Subaru, $23ish from MRT (2 req)
Visit Sex Shop & Support My Mods.
User avatar
Ben

Posts: 490
Joined: Sat Nov 21, 2009 6:31 pm
Location: qld.au
Car: 2.0 STi
Real name: Ben

Re: DIY - Intercooler Water Sprayer

Postby jacks-GTB » Mon Sep 12, 2011 8:52 pm

t.renshaw34 wrote:very very nice :D, bet that would have taken a while to get right.

what are your gains like from it? wouldnt be more than 5-10 kw would it? maybe more on a hotter day.

I havent read alot into these so dont hate if im way off. lol


Thanks for that.. :D :D

Yeah it took a little while...! But worth it...

I'm not sure about power gains..! But definitely gains in power efficiency...
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629

Re: DIY - Intercooler Water Sprayer

Postby jacks-GTB » Mon Sep 12, 2011 8:54 pm

Ben wrote:Nice one!

If you are using too much water, try the Subaru Genuine Intercooler Water Spray Nozzles for a finer mist.
Part Number: 86636FA120
$27ish from Subaru, $23ish from MRT (2 req)


Cheers mate...

Thanks for part no. I'll look into it... :D :)
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629

Re: DIY - Intercooler Water Sprayer

Postby coyote » Tue Sep 13, 2011 9:20 am

teK-- wrote:Those water droplets are huge! What nozzles did you use; I'm pretty sure other kits i've seen it is a very very fine mist to allow for quick evaporation.

Also it may be more accurate for you to measure IAT via the ECU rather than stick a probe inbetween the cooling fins.


Agree on the nozzles but measuring IAT temp with the ECU is useless. The sensor is built into the MAF sensor, before the turbo. Dumb design.

** Team Tony **
User avatar
coyote

Posts: 2207
Joined: Mon Jul 30, 2007 2:33 pm
Location: brisbane.qld.au

Re: DIY - Intercooler Water Sprayer

Postby jacks-GTB » Tue Sep 20, 2011 4:59 pm

maybe i'll leave the thermostat then.... cheers :D
User avatar
jacks-GTB

Posts: 1332
Joined: Wed Mar 30, 2011 8:06 pm
Location: Central Coast NSW
Car: 2007 Subaru Liberty GT Spec B
Profile URL: viewtopic.php?f=10&t=16629
