Gambit's Project

[Gambit]

What sort of power gains will you be looking at with that beast?
Also what was the price roughly.

The guys in the states are making these numbers on dynapacks


and here is a blatant plug for my supplier, cannot recommend these guys enough, placed the order on Monday had the turbo delivered by Thursday afternoon the same week with UPS !!

http://realstreetperformance.com/store/ ... -2004.html

[Gambit]

another addition, could not resist a bargain..

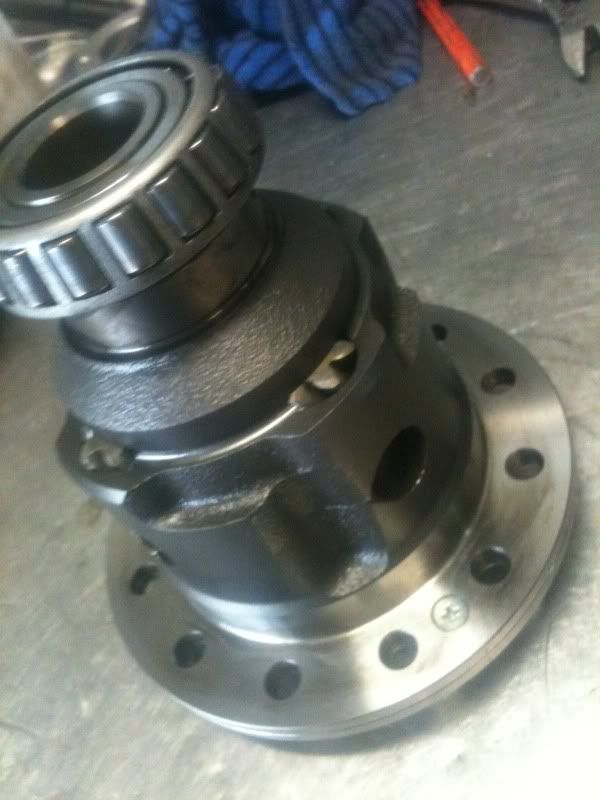

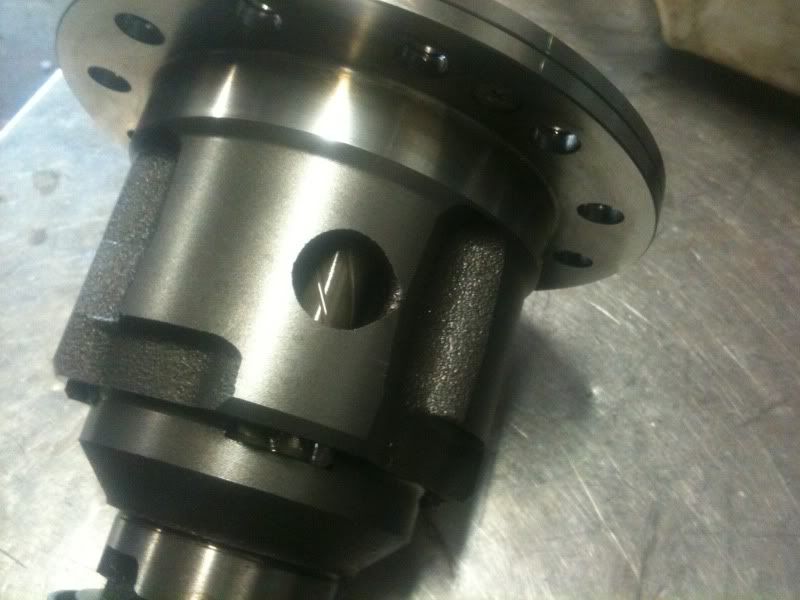

STi Helical Front LSD:

[jeffas4966]

Hey Gambit,
I have been interested in a front LSD, do you have the specs on it and where you got it from?

Cheers

Jeff

[Gambit]

Hey Gambit,
I have been interested in a front LSD, do you have the specs on it and where you got it from?

Cheers

Jeff

PM sent

[legacydan]

do you have anymore pictures of where you intercooler piping connects to your turbo. Did you have to trim much of your bumper skin or just the foglight vents

[Gambit]

Hey Dan no pics from that angle though will take some when I get a chance. But there was some trimming of bumper and fog surround.

[legacydan]

Did your intercooler kit come painted black or you got that done yourself? Im tempted to get a FMIC myself of Legacygt.com with the black ceramic thermo coating but my mapper said its a bad idea to do on the core an it will actual lower its overall efficiency. I want to go for the stealth look too!

[Gambit]

Did your intercooler kit come painted black or you got that done yourself? Im tempted to get a FMIC myself of Legacygt.com with the black ceramic thermo coating but my mapper said its a bad idea to do on the core an it will actual lower its overall efficiency. I want to go for the stealth look too!

We used VHT hi temp paint for the piping and cooler and had it all done in the one hit when we made up the piping.
He may be right when it comes to ceramic coating the cooler, but any other non ceramic application IMO would be definitely ok to use. Go for the stealth look

[legacydan]

the core comes painted in a thermal dispersement and pipes can be gotten ceramic powder coated, Do me a favour and go out to your car now, pop the hood and take a picture of how it looks with the engine cover in place! Exactly the look i want to go for!

[Gambit]

Yeah well i am going twist mount and hopefully we can get the engine cover back on, if not oh well but i really like how it hides everything too.

[Gambit]

Thought i should update the spec sheet now
Getting excited, is all underway, block will be reassembled next week, cant wait.

Engine:
EJ255 long block
CP forged pistons
Eagle H beam conrods
ACL race bearings
ARP 12mm head stud bolts
Balanced and nitrided crank
BC valve springs
BC 1mm oversized intake and exhaust valves
Kelford 264 inlet and 260 exhaust cams
Race Ported EJ255 heads

Induction:
Twistmount GTX3076R Garrett with 0.60 Compressor Housing
Tial V-band 0.82 a/r exhaust housing
Tial V-band 44mm external wastegate
4inch Intake with KStech 83mm MAF SRI
Cobb Tuning CAI Airbox
Greddy FMIC

Exhaust:
Custom 3inch dump pipe
MRT center and resonator
Custom Magnaflow quad mufflers
Kando Equal Length Headers

Fuel:
ID1000cc injectors
Aeromotive Fuel Pressure Regulator
Full blown Dual fuel pump with
Bosch 044 as main and Walbro GS342 as second

Drivetrain:
Exedy Heavy Duty Clutch
STI Front Helical LSD

Wheels:
Wedssport TC105N 18x8.5 +42
Hankook Ventus RS-3 245/40/18
Kics Calbre wheel nuts

Brakes:
Brembo 4 piston front calipers
Brembo 2 piston rear calipers
DB400 front and rear rotors

[3rspecb]

that's an impressive list of parts... should make some serious power....

[Gambit]

Update:
Got my heads back very nice port job on them, quite happy.

[Gambit]

News just in, short block is complete

[lozza]

GO GAMBIT GO




GL with project
