Project Veloci

[MH3.0R]

Either of the bottom pictures look good in my opinion

I agree.

[Kekotic]

Only cause Cruisn said it.

And what would you do if he said "f..k me"???

Do my duty.

You gunna black badge it up Mark? Do ittttt.

[bass_straitener]

Either of the bottom pictures look good in my opinion

Was this comment meant for this forum or one of the other ones you troll..

[Kekotic]

Either of the bottom pictures look good in my opinion

Was this comment meant for this forum or one of the other ones you troll..

Pretty hard to confuse this forum with your guyswithhardbods forum you guys seem to always go on about.

[bass_straitener]

Either of the bottom pictures look good in my opinion

Was this comment meant for this forum or one of the other ones you troll..

Pretty hard to confuse this forum with your guyswithhardbods forum you guys seem to always go on about.

Sprung.

We sent GB some pics from our meet last night.

I didn't think anyone would get it...

[Kekotic]

Was this comment meant for this forum or one of the other ones you troll..

Pretty hard to confuse this forum with your guyswithhardbods forum you guys seem to always go on about.

Sprung.

We sent GB some pics from our meet last night.

I didn't think anyone would get it...

yeah you like to see homos naked, that's cool man whatever.

[bass_straitener]

yeah you like to see homos naked, that's cool man whatever.

Finished stalking NewbieGT for the day?

[Kekotic]

yeah you like to see homos naked, that's cool man whatever.

Finished stalking NewbieGT for the day?

Still have a few more head bangs against the wall left in me for today.

[<GB>]

You 2 kids....

[SegR]

This is my personal preference but I don't recall what clearances from the side & bottom of the vehicle are required and it probably doesn't meet them. (edit: probably will.) I've been contemplating DRL's for a while and was considering dremelling out the middle horizontal bit on the foglight surround and mounting them smack bang in the centre (vertically). Would probably get some U/C channel rubber from clark rubber to carry the thick shape of the DRLs arround to the end of the surround. (hard to explain, if anyone gives a shit I will explain better)

Are they the Philips Daylight 8?

[MH3.0R]

This is my personal preference but I don't recall what clearances from the side & bottom of the vehicle are required and it probably doesn't meet them. (edit: probably will.) I've been contemplating DRL's for a while and was considering dremelling out the middle horizontal bit on the foglight surround and mounting them smack bang in the centre (vertically). Would probably get some U/C channel rubber from clark rubber to carry the thick shape of the DRLs arround to the end of the surround. (hard to explain, if anyone gives a shit I will explain better)

Are they the Philips Daylight 8?

It is also my 1st preference, but when I went to measure, they were below the minimum ground height. They need to be 250mm above ground at the lower edge of the DRL and these sat at about 180mm from memory.

Yes, they are the Philips Daylight 8. I had a look at the cheaper kits and they were too bulky for mounting in the fog surround. I do not like the look of the 4xLED or 5xLED kits so for me the 8xLED version was sweet and narrow profile with a good mounting bracket as well.

[MH3.0R]

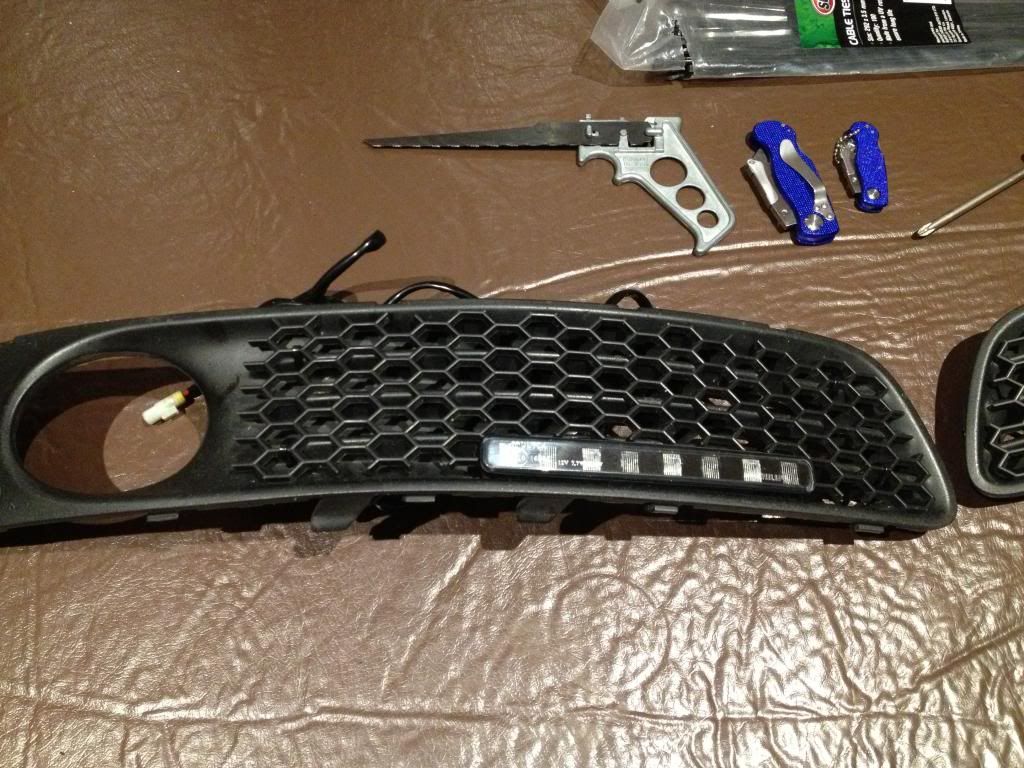

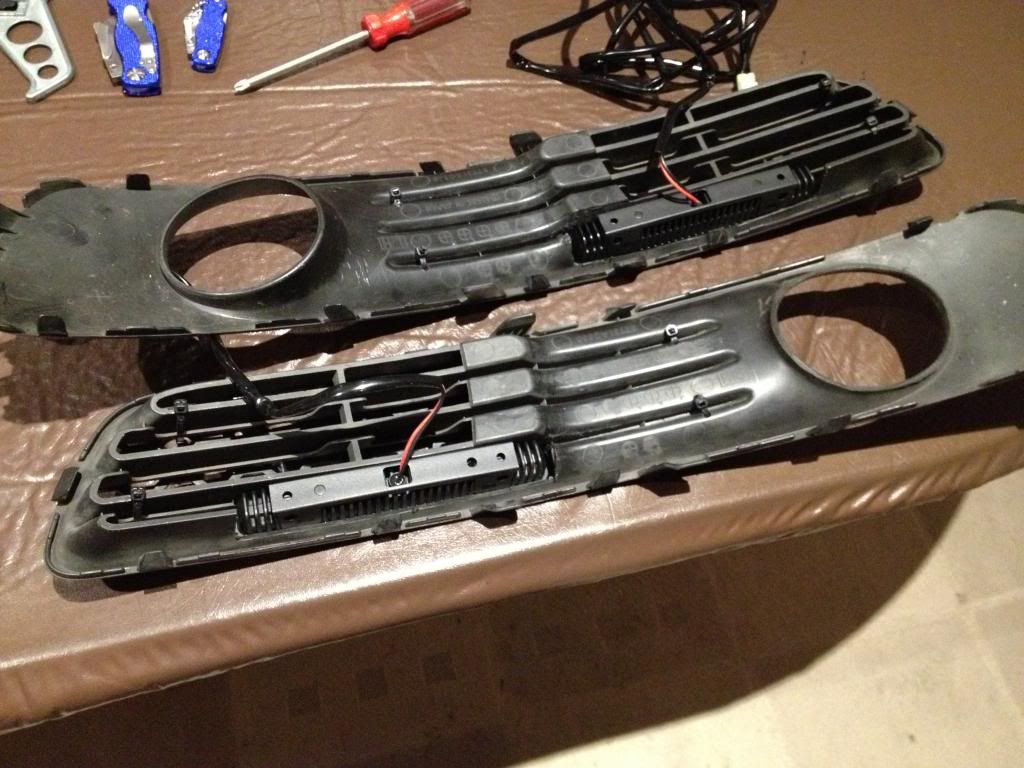

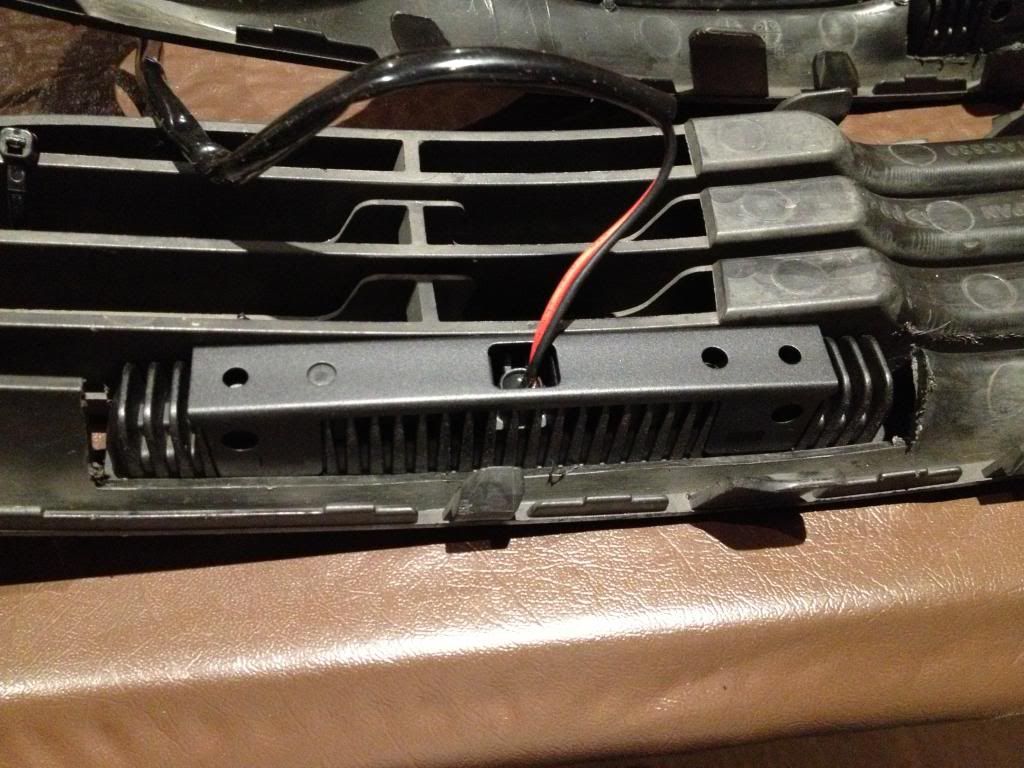

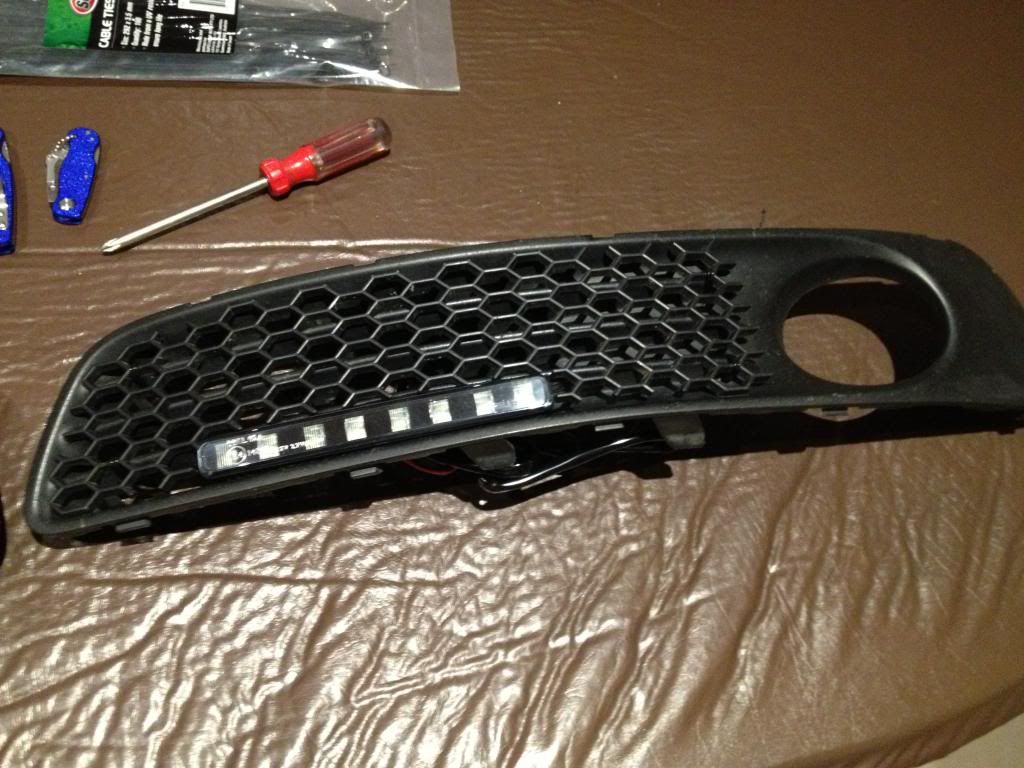

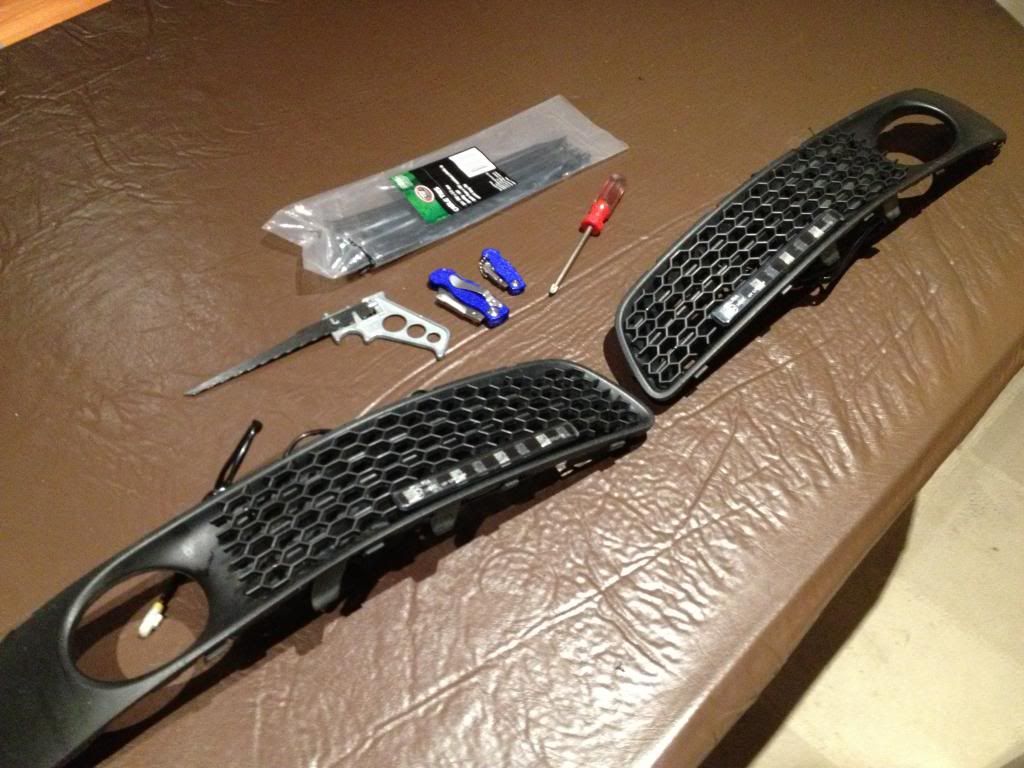

Some of the installation in progress shots from today. Also included the tools needed. No Dremel required on the second fog surround and gave a neater finish from some skillful carving with the stanley knives.











Took a little while to finish off with some pre-drilled mounting holes and was a bit fiddely getting them in the same position for left and right.

EDIT: So, also add to the tools, a 2.5mm drill bit and a pin vice to hand drill the holes. The plastic is soft enough to hand drill.

And now for tomorrow, the wiring! I think I might do a rough in job to start, but in the long run, I am going to re-position the connectors to be included within the front bar so removing the fog surrounds with the DRLs will be easier. So will visit Jaycar tomorrow to get all the necessary bits.

[MH3.0R]

...

You gunna black badge it up Mark? Do ittttt.

Nope! The original badge remains. In fact, I need a new one as this is the original original and very chipped and cracked. To wit, to woo, Japanparts will do....

[MH3.0R]

Either of the bottom pictures look good in my opinion

Was this comment meant for this forum or one of the other ones you troll..

As long as the bottom pics are of the correct persuasion, I still agree!!!

[MH3.0R]

Completed the install today. Took all of 30 mins. Hardest bit was getting the scotch connector on the Parker 12V wire. Too lazy to take the battery out. Used double sided tape to put the control box in under the bonnet rail directly opposite the battery. All wires reached to that point with some spare length. Not sure if I will reverse the location of the connectors just yet. Might wait a while as they are pretty easy to get in and out with an additional 5 mins effort threading the looms.

Pretty cool the way the DRLs dim when the parkers or headlights are turned on.

Also did all the measurements and the position I have installed falls inside all the position requirements from the manufacturer.



Now, what's next? Oh, yes, the additional bits from Raptor coming soon!
