AVO air-box insulation

[adam]

i didn't know where to stick this because i don't know how it's gonna pan out at this stage so .... here it is.
i, along with some others bought an AVO cold air box a while ago.
i always thought it could benefit from some insulation so i had a crack...

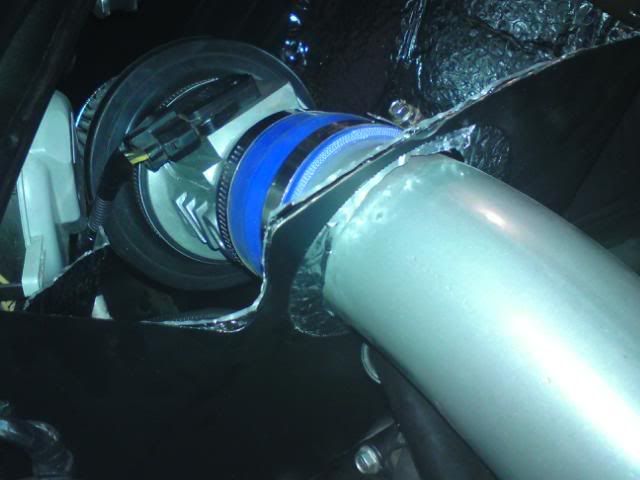

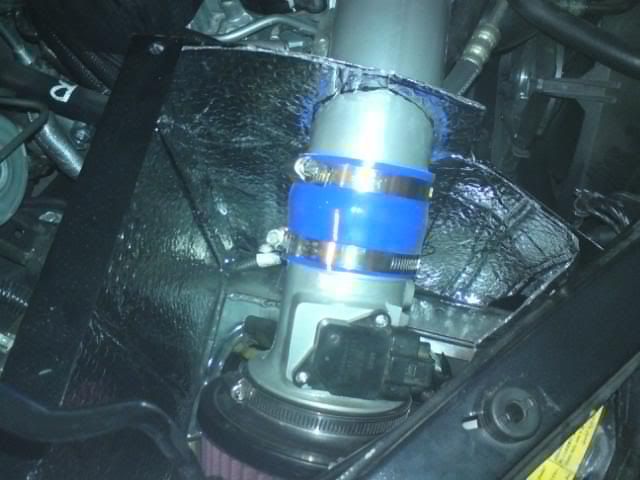

i bought a brand new shiny sun visor thingy, did some measurements, cut a bit and went silly with the clear silicone and this is the result....



essential tools...

[AndySTi]

Essential tools

[Arith]

Great work Adam! You didn't happen to take before and after temperature readings did you? Meh. Even if it only netted you 0.3 kw it looked like a fun project.

Gez, you and mason_luke need to do a group buy for decent cameras!

[Mano™]

There no lid for it?? or is the bonnet the lid?

[smythie]

any quieter with that insulation on it?

[coyote]

Very sensible mod Adam.

Just one question:

Does the material insulate by having air pockets or fibre as well as reflect?

Reflective foil is great for insulating against radiation, but I'd suggest the main way heat is transferred into the air box is conduction.

Nice to see a thoughtful mod on here, good on you.

[I Wish]

I agree with Coyote. I would have glued the material to the outside of the airbox.

Clarkes rubber sell a heat reflective product with a foam backing. I used it to make up a makeshift box for my rex once. Worked a treat.

Not my pic or installation. But you get the idea. It should be on the outside.




You could go for a thrash and when you put your hand into the airbox. You could not feel any radiated heat from the engine and surrounds.

[moggy]

So where does the glass of urine fit into things? Seriously though that's a stunning idea using reflective material.

Bob.

[WhiteGTB]

Dude, that looks like a job well done!

I think I'll be following this work very soon

[adam]

thanks for the support boys..

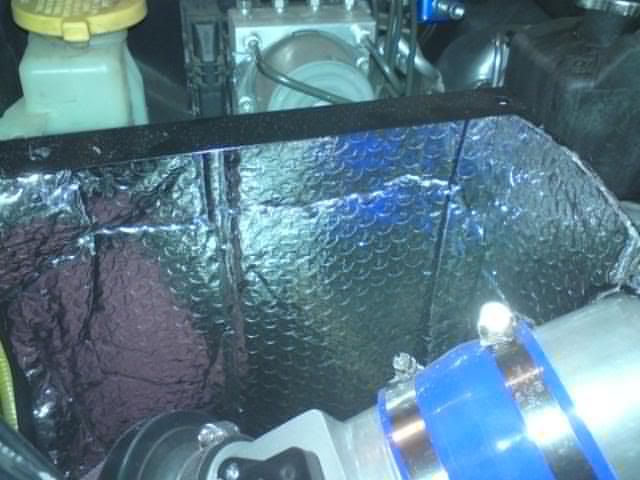

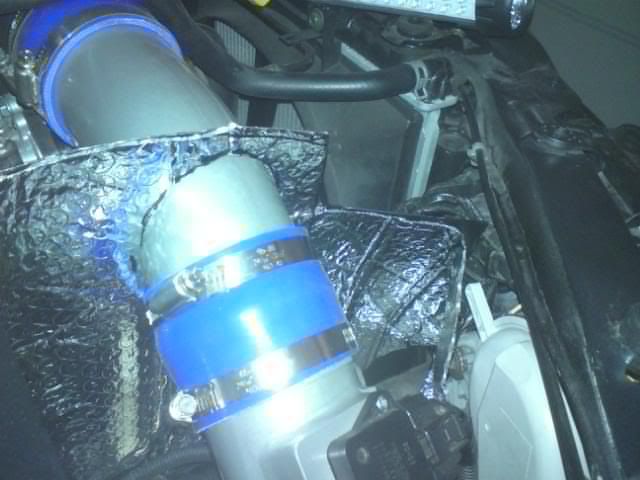

just for jim i've used my phone to take some more shots today

You didn't happen to take before and after temperature readings did you?

no, but after a 1hr drive today of which 25mins was on the M2 i took a look so i could see if it was about to catch fire or not. there was a large "touch temp" variance between the bits outside(ouchy!) and inside (bit warm).

There no lid for it?? or is the bonnet the lid?

there's a fibreglass lid that i've also stuck some of the material to.

any quieter with that insulation on it?

it sounds a bit quieter, more muffled.... i think, it was a bit hard to tell with 3 kids in the car.

Does the material insulate by having air pockets or fibre as well as reflect?

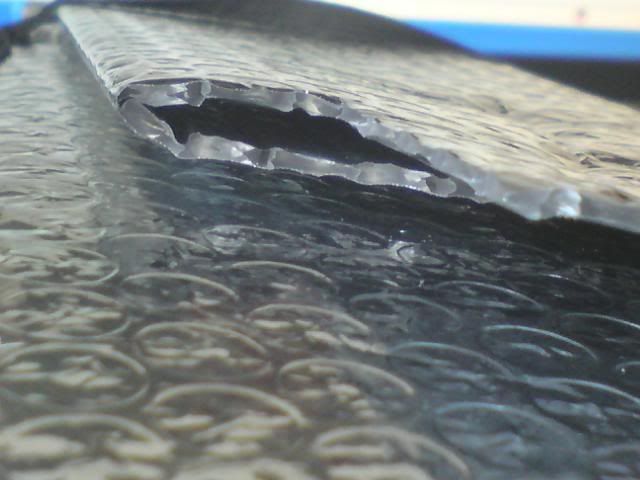

it has some pockets a bit like bubble wrap with tin foil on both sides..
it's ~2-3mm thick?

Clarkes rubber sell a heat reflective product with a foam backing. quote]

I Wish i had have know that before. i looked all over for the right stuff. if it ends up not being thick enough i'll just stick on another layer.
as i mentioned before it's shiny on both sides so it should work, at least a bit.

So where does the glass of urine fit into things?
Bob.

LOL! yes, that '04 Palandri chard is getting a little golden! yummy though...

Dude, that looks like a job well done!

I think I'll be following this work very soon

thanks trieu, i'll give you my plans if you want them?
